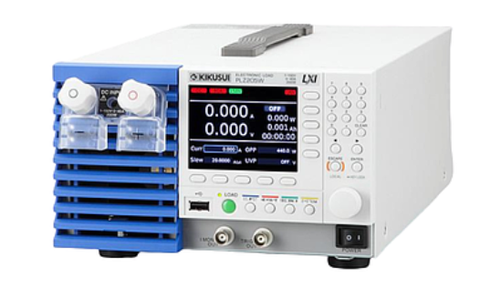

Multifunctional Electronic Load

Features

• Operation voltage: 0.25V to 150V (from 0.05V)
• High speed slew rate: 60A/μs
• Arbitrary I-V characteristics: Installed “ARB mode”
• Parallel operation feature: The total current and power capacities can be increased to the maximum of 10.8kW (2160A) by connecting the booster units.
• New high visibility color display.
• LAN(LXI compliant)/RS232C/USB are standard interface. External analog control. *GPIB option.
• Improved sequence feature (Maximum 10000 steps)
• Setup memory can be saved to or loaded from a USB flash drive.
