PH/PV series
ESPEC's Temperature Chambers are suitable for a broad range of applications from high-temperature testing, to heat treatment or drying for production lines.
Several volumes are available in horizontal (PH series) or vertical (PV series) models.

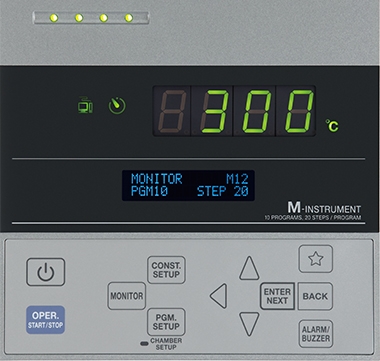

A temperature-indication controller with an advanced PID operation, and an originally developed chamber configuration provide unmatched oven performance. Temperature uniformity, temperature constancy, temperature heat-up rate, and temperature recovery time are performed with the upmost reliability.
We provide a total of 16 ovens with combination of temperature range, capacity, and instrumentation.
Components are incorporated into the top portion of the vertical chamber, reducing installation space by 20 to 60% (comparison with conventional model). Increases productivity on the production line, and saves laboratory space.
Model |
Temperature & range |
Inside/Outside |
PV-212 |
(Ambient temp. +20)℃ to +200℃ |
W600×H600×D600 / |
PV-222 |
W600×H900×D600 / |
|
PV-232 |
W600×H1200×D600 / |
|
PV-332 |
W800×H1200×D800 / |
|
PH-102 |
(Ambient temp. +20)℃ to +200℃ |
W450×H450×D450 / |
PH-202 |
W600×H600×D600 / |
|
PH-302 |
W800×H800×D800 / |
|
PH-402 |
W1000×H1000×D1000 / |
