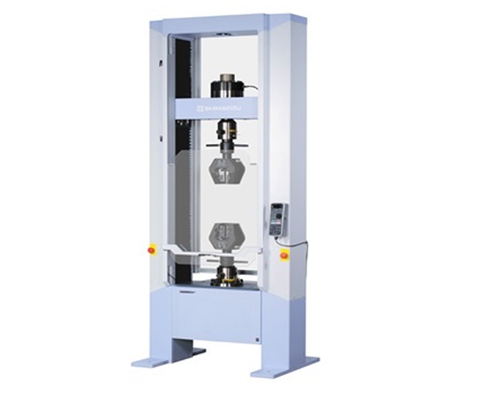

Autograph AGS-X Series
The Shimadzu Autograph AGS-X product line provides practical testing solutions for a wide range of applications with high performance. It offers advanced control and intuitive operation. The Autograph AGS-X product line sets a new standard for material evaluation while providing maximum safety solutions in a modern design style.
Iron and steel industry
In addition to regular stress testing, tensile strength testing with elongation testing is increasingly being performed according to ISO 6892-2009 and JIS Z2241-2010 standards.
Plastics and plastics industry
Measuring the elastic modulus with ultra-small elongation has become a necessity according to ISO 527, ISO 178, and JIS K7171 standards.
Ceramics industry
Many samples are damaged by small displacements, so precise control is essential from the start of testing.
Max. Load Capacity |
10kN |
---|---|
Crosshead Position Detection: Display Method |
Digital display (display resolution: 0.001 mm) |
Power Requirements |
Supply voltage fluctuations within ±10% of the set value. |
Power Requirements |
Single phase 100/120/220/240 V AC |
Weight |
85kg |
Dimensions |
W653×D520× |
Accessories |
Load cell (with CAL cable), Power cable (2.5 m),turning rod, cable clamps, instruction manual |
Standard Functions |
• Analog recorder (option) output |
Standard Functions |
• External analog input (2 channels) |
Standard Functions |
• Automatic reading of load cell characteristic values |
Sampling Speed |
1000Hz max. |
Crosshead Position Detection: Positional Accuracy |
±0.1% indicated value or ±0.01 mm, whichever is larger |
Crosshead Position Detection: Measurement Method |
Optical encoder |

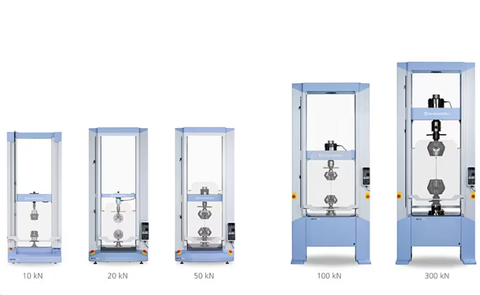

Lineup of Models Differing byLoad Cell Capacity |
1N /2N /5N /10N /20N /50N |
Effective Test Width |
425mm |
Crosshead – Table Distance(Tensile stroke) |
1200mm |
Crosshead Speed and Permitted Test Force |
To load cell capacity across entire speed range |
Crosshead Speed Accuracy |
±0.1 |
Crosshead : Max. Return Speed |
1500mm/min |
Crosshead : Speed Range |
0.001 to 1000 mm/min (stepless) |
Measurement : Calibration |
Automatic test force calibration: select tensile, compression, or |
Measurement : Accuracy : Standard-Precision Type (1/500, ±1%) |
Within ±1% indicated test force (at 1/500 to 1/1 load cell rating) |
Force:Accuracy : High-Precision Type (1/500, ±0.5%) |
Within ±0.5% indicated test force (at 1/500 to 1/1 load cell rating) |
Loading Method |
Direct high-precision constant speed strain control method via non-backlash ball-screw drive |
Operating Environment |
Temperature: 5 °C to 40 °C; Humidity: 20% to 80% (no condensation) |
