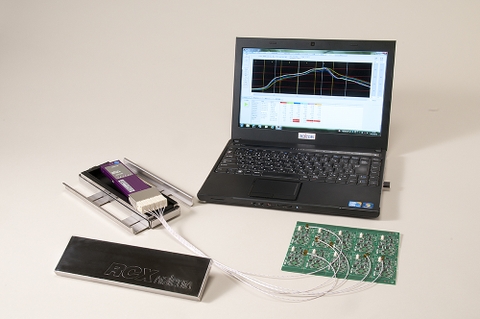

RCX-1
Measuring instrument that can be added is a new concept of measurement unit (temperature measurement unit 12ch, reflow camera, wind velocity and oxygen concentration sensor) to measure the temperature of the core needed to 6ch the basic unit.
Item |
Specification |
Model Name |
RCX-1 |
Main unit |
RCM-S |
Measuring Temp. Range |
0~500℃ |
Max Measuring Time |
Approx. 10 hours |
Sampling Time (sec.) /Max. Storage Time |
0.05sec./4h50min, 0.1sec./10h40min, 0.2sec./21h20min, 0.5sec./48h20min, 1.0sec/96h40min, 2.0sec./193h20min, 4.0sec/386h40min, 8.0sec./773h20min Arbitrary setup possible |
Temperature Accuracy |
±1℃ |
Measuning Points |
1-6 Points |
Heat Resistant Connector |
Miniature Connector |
Input |
Thermocouple JIS-K 1kΩ max. |
0.1 10m |
|
Power Supply |
AAA battery |
Manganese batteries Alkaline battery Nickel-metal hydride |
|
Outer dimensions |
Memory unit (w/o Heat resistant case) 55 (W) x 170 (D) x 18 (H) mm 200g |
Heat resistant case: 65 (W) x 245 (D) x 25 (H) mm 370g |
|
Data Transmission Method |
USB, Bluetooth |
Weight |
Approx. 570g (Heat resistant case and battery are included) |
