Residual Oxygen/Carbon Dioxide Meter

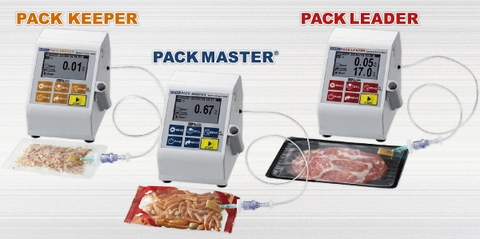

PACK KEEPER
PACKKEEPER is low-cost model for O2 measurement only
PACKMASTER is DO-compatible model by using option
PACKLEADER is O2 & CO2 simultaneously measure with one unit
Speedy measurements
■ One-touch measurements
Just press the START key to begin.
The automatic stability decision function will display the stable value.
"One Year Warranty" Oxygen Sensor
Suppose the oxygen sensor fails and becomes unusable within one year of opening the package and starting use. In that case, Iijima Electronics will provide a "fault replacement" so you do not have to purchase an additional sensor for one year. The "fault replacement" is not a new sensor but a product that can be used for the remainder of the warranty term.
Easy on-the-spot replacement
1. Pull the oxygen sensor out from the probe.
2. Insert the new oxygen sensor.
3. Mount the probe onto the housing to complete the replacement.
Convenient functions
- Clogging detection function
A pressure sensor is mounted. A message will appear if the needle or tube is clogged when the gas is drawn. Replace the part at the site to resolve the problem.
- Guidance display function
Easy-to-understand troubleshooting and error messages are displayed in Japanese. QR Codes are also provided so you can check detailed procedures and videos on our website.
- Memory function (300 cases)
Press the MEMORY key to record the measured values. The history can be read out easily.
|
Product Name |
Residual Oxygen Meter |
Residual Oxygen Meter |
Residual O2/CO2 Meter |
|
Oxygen Sensor |
WAGNIT® / Model:WA-SGF2 (One year warranty) |
|
Oxygen sensor measurement method |
Membrane type galvanic cell |
|
CO2 sensor measurement method |
- |
- |
NDIR |
|
Display method |
Monochrome TFT LCD display |
|
O2 measurement range |
[Oxygen concentration] |
|
CO2 measurement range |
- |
- |
0.0 to 100.0%CO2 |
|
DO measurement range |
- |
0.00 to 9.99mg/L, |
- |
|
Repeatability (Following our measurement conditions at shipment) |
O2：[0.00 to 0.99%O2] ±0.03%O2, [1.00 to 9.99%O2] ±0.09%O2 |
|
Repeatability (Following our measurement conditions at shipment) |
- |
- |
CO2：0.0 to 100.0%CO2: ±3% reading value |
|
Measurement method |
One-touch sampling |
|
Required gas volume |
6mL |
|
Measurement time |
6 seconds |
6 seconds |
9 seconds |
|
Calibration method (O2) |
Select “CAL” from the menu and press the START key to calibrate. |
|
Memory function |
Up to 300 measurements can be saved. The history can be displayed on the screen. |
|
External output |
- |
External connection possible with an RS-232C cable (printer, personal computer) |
External connection possible with an RS-232C cable (printer, personal computer) |
|
Other functions |
- Automatic stability decision function (With display function using progress status bar) |
|
Operating temperature range |
5 to 40℃ (With no dew condensation) |
|
Power supply |
AA alkaline batteries or nickel-metal hydride batteries (rechargeable) x 4 batteries, or AC adapter (100VAC) |
|
Main unit demensions |
93(W) x 155(D) x 125(H) mm (excluding protrusions) |
|
Main unit weight |
Approx. 620g (including batteries) |
