Rework Station
FR-701

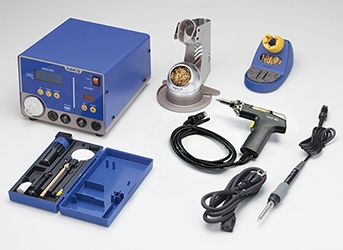

Dual function rework station with FR-4103, 140W high power desoldering gun, and FX-8801, soldering iron, 2-in-1 unit for space saving
| 6 applications for a variety of soldering and desoldering works
Besides FR-4103, 140W desoldering gun, and FX-8801, soldering iron, 4 more applications are compatible with FR-701.
Tips (T18 and T19 series) and nozzles (N61 series) deliver excellent cost efficiency.
| High-power Desoldering gun HAKKO FR-4103
Increasing the power to 140 W from 50 W of our previous models (HAKKO 474・475), it can make it easy to desolder on multi-layer PWB which was never an easy job, and it can also shorten the process time.
A wide selection of nozzle, with the addition of new types, is available for a variety of desoldering works.
| N2 soldering iron HAKKO FX-8802
The N2 gas runs into the nozzle assembly and covers over the soldering tip. It prevents the soldering tip and the heater from being readily oxidized and performs great role as a preheating.
Two effects of N2 system, preventing oxidation or preheating effect, can improve soldering defects such as bridging, protrusion icicle, insufficient solder filling in PTH, etc.
T18 tips series are compatible with this application.
|
Model No. |
FR-701(Desoldering tool: FR-4103) |
|
Power consumption |
260 W |
Station
|
Dimensions |
190 (W) × 140 (H) × 220 (D) mm |
|
Weight |
6.2 kg |
Station (Soldering)
|
Output voltage |
AC 26 V |
|
Temperature range |
50 to 480℃ |
|
Temperature stability |
±1℃ at idle temperature (When set to 200 to 480℃) |
Station (Desoldering)
|
Output voltage |
AC 24 V |
|
Vacuum generator |
Vacuum pump, double cylinder type |
|
Vacuum pressure |
80 kPa (600 mmHg) |
|
Suction flow |
15 L/min. |
|
Temperature range |
330 to 450°C |
|
Temperature stability |
±5°C at idle temperature |
Soldering iron
|
Power consumption |
65 W (26 V) |
|
Tip to ground resistance |
＜2 Ω |
|
Tip to ground potential |
＜2 mV |
|
Heating element |
Ceramic heater |
|
Standard tip |
Shape-B (No. T18-B) |
|
Cord length |
1.2 m |
|
Total length |
222 mm (with T18-B tip) |
|
Weight |
46 g (with T18-B tip) |
Desoldering Gun
|
Power consumption |
140 W (24 V) |
|
Nozzle to ground resistance |
＜2 Ω |
|
Nozzle to ground potential |
＜2 mV |
|
Heating element |
Composite heater |
|
Standard nozzle |
1.0 mm dia. S type (No. N61-05) |
|
Cord length |
1.2 m |
|
Total length |
168 mm (with N61-05 nozzle) |
|
Weight |
190 g (with N61-05 nozzle) |
