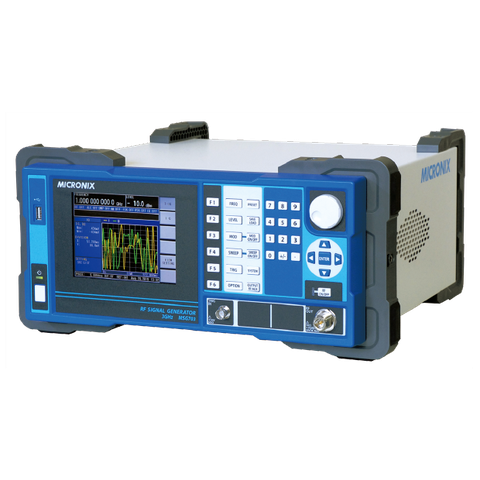

RF SIGNAL GENERATOR

IQ modulation signal output

The IQ modulated signal is output by inputting such IQ signal as analog, digital or list data(USB memory and manual) in IQ modulator (option) from the outside.

Fast switching

The fast switching of 0.5μs at frequency (however, 1.5ms at 10N-3(MHz)(N: integer) point) and 200μs at level is possible. For command and external trigger receiving, both are 1.5ms (however, 3ms at frequency 10N-3(MHz)(N: integer) point).

ALC function

MSG703 ensures the high accurate RF output level by ALC circuit (Auto Level Control circuit).

High accurate frequency and level output

The frequency can be set at maximum 11 digits in 0.1Hz resolution. The accuracy of level is ± 0.6dB (excluding 625 to 725MHz) in “ALC on”.

Frequency and level setting by three ways

Since frequency and level can be set by using ten key, rotary encoder and arrow key, the operability will increase dramatically.

Abundant modulation functions

FSK and PSK of digital modulation, and AM of analog modulation are provided as standard. FSK and PSK have the register mode with fast transmission rate and the direct mode with generation of arbitrary modulation.
In addition, the burst control is available.
