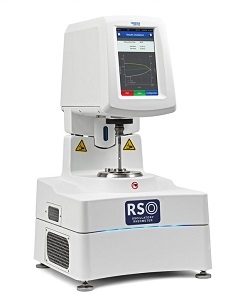

RSO
The RSO Stand-alone mode with easy-to-use interface makes it simple for QC Users, it can also help in Viscoelastic measurements by providing R&D users with advanced testing capabilities.
RSO Flexibility allows cone/plate and concentric cylinder in a single instrument.
Min Torque |
5μNm |
Max Torque |
100mNm |
Resolution of Torque |
0.02μNm |
Bearing |
Air bearing |
Resolution of deformation |
1.25μrad |
Min speed |
0.001rpm |
Max speed |
1500rpm |
Min frequency |
0.01 Hz / 0.06 rad/s |
Max frequency |
20 Hz / 126 rad/s |
Measurement system |
Cylinder/Cone Plate |
Temp control |
Peltier or bath option |
Min Temp. |
0° C |
Max Temp |
180° C |
Size W×H×D |
360×600×340mm |
Weight |
31kg |
