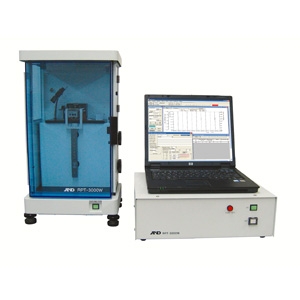

Rigid-body Pendulum Type Physical Properties Testing Instrument

Coating and Adhesives

-Curing temperature and curing time
-Curability applied by curing agent and physical properties
-Designing data for painting line
-Quality evaluation for coated film and thin film
-Absorption and lotions

Cosmetic and Medical

-Drying characteristics and surface physical properties of nail polish
-Drying behavior, adhesive behavior and elastic behavior of cosmetic pack and adhesive agent
-Lubrications and lotions

Food

-Gelling behavior and physical properties of gelatin and agar
-Functional and quantitative evaluation

Textiles

-Physical properties
-Fabric handling

Plastics

-Surface physical properties
-Film Physical properties
-For evaluation of surface and internal physical hard coat curing process

Ink

-Physical properties of ink on item to be printed
-Dryability
-Transcribing behavior to roller

Electronics and Electricity

-For evaluation of conductivity paste curing process
-For evaluation of low melting solder melting and set process
-For evaluation of printed circuit board curing process and physical properties

Others

-Concrete and asphaltic materials

Swing Angle (Maximum)

±0.573 degrees

Angle Resolution

1.749e-5 degrees

Swing Displacement Detection

Inductance Non - Contact Type
Displacement Sensor

Period of Vibration

0.05 ~ 2.000 sec

Logarithmic Damping Ratio

0.001 ~ 6.000 sec

Test Temperature

-100 ~ +400 degrees Celsius

Cooling System

Liquid Nitrogen

Measurement Time

1 ~ 9999 minutes

Option

Ultraviolet Irradiation Device

Dimensions / Weight

Main Body : 300 × 220 × 525 / 15kg
Controller : 410 × 350 × 135 / 12kg

Safety Device

Safety Lamp for increasing temperature
(It turns on at 50 degrees)

Power Supply

100V AC 50 / 60Hz 550VA
