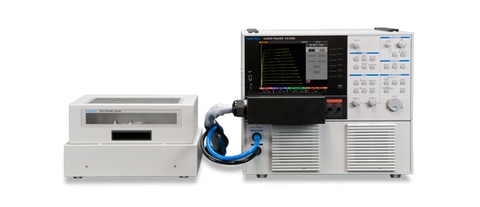

CS-5000

Contact
Quantity
Out of stock (Please contact us directly)

Features

  • Ideal for measuring the characteristics of various semiconductors such as IGBTs, MOSFETs, transistors, and diodes, etc.
  • Maximum peak voltage 5,000V (high voltage mode)
  • Maximum peak current 1,500A (CS-5400 high current mode)
  • All models equipped with LEAKAGE mode (1pA cursor resolution)
  • USB port to save screen data and setup data
  • Equipped with LAN interface for remote control
Category Compare 0 Cart Call now
0972000270
Call 0972000270 now for the best advice!
Status: Out of stock
Brand: IWATSU
Promo Code Promo Code
Nhập mã NEOTECH SOLUTION để được giảm ngay 10$
Nhập mã TETGIAPTHIN để được giảm ngay 20$ tổng giá trị đơn hàng. Số lượng có hạn
See more promo codes Collapse

Easy-to-understand measurement screen

Graphical configuration screen

Configuration screen

Transistor V-I characteristic example (Trace mode)

Example of V-I characteristics of transistor (TRACE mode)

Vbe and Ic waveforms in the large current pulse mode (Wave mode)

Vbe/lc waveform in high current pulse mode (WAVE mode)

Model

CS-5000 Series common

Mode/polarity

Full-wave rectification/+ -,DC/+-, LEAKAGE/+-, AC

Maximum peak voltage/current

Maximum peak voltage

Maximum peak current (maximum peak pulse current *)

5kV

25mA(25mA*)

300V

750mA(1.5A*)

30V

7.5A(15A*)

Maximum peak power

At 5kV:320mW/3.2W/32W30V,At 300V:120mW/1.2W/120W/390W
