Shock Test System
Model 65/81

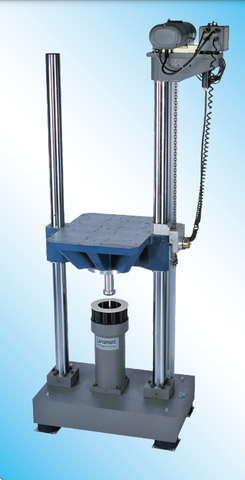

- The Model 65/81 Shock Test System is the most popular model for testing small to mid-size components and systems.
- The Damage Boundary Programmer allows the operator to perform the two shock pulse waveforms commonly used for fragility testing—short duration half sine and long duration trapezoidal shock pulses.
- The combination of table size, payload capacity, and pulse quality make the Model 65/81 the preferred choice for many applications.

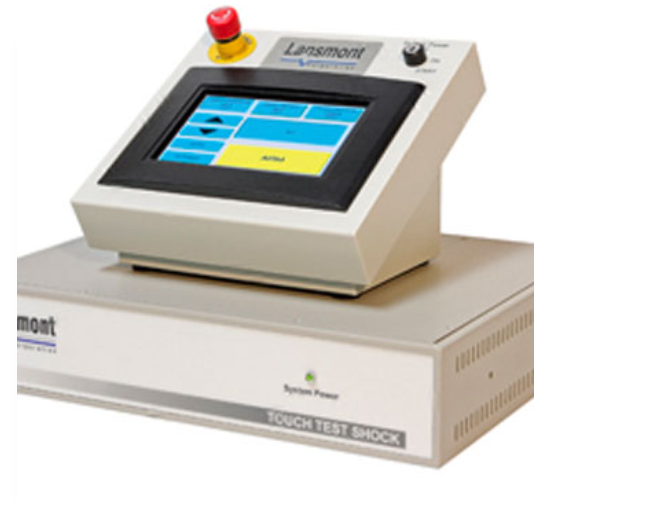

- The Model 65/81 is outfitted with a TouchTest Shock 2 Table Top Control Console.
- TTS2 makes shock testing safe and easy.
- TTS2 communicates seamlessly with Test Partner Data Acquisition Systems.
TouchTest Controller

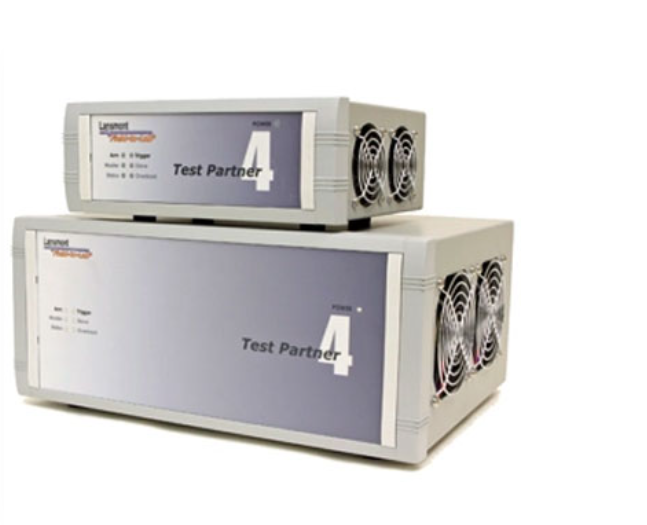

Test Partner™ Data Acquisition
Performance specification
TABLE DIMENSIONS
Side to Side 25.6 in. (65 cm)
Front to Back 31.9 in. (81 cm)
TEST CAPABILITIES
Max. Acceleration 600g
Min. Pulse Duration 2 msec (half sine)
Max. Velocity Change 24 ft./sec (7.3 m/sec)
Pulse Waveforms Half Sine
*with Optional Programmers Trapezoidal
Terminal Peak Sawtooth*
MAXIMUM PAYLOAD 500 lbs. (227 kg)
Machine Specification
MACHINE ENVELOPE DIMENSIONS
Height 119 – 149 in. (303 – 379 cm)
Side to Side 59 in. (150 cm)
Front to Back 32 in. (81 cm)
POWER REQUIREMENTS
Machine 200 – 240 VAC/3Φ/50 – 60 Hz: 5 amp min.
380 – 480 VAC/3Φ/50 – 60 Hz: 3 amp min.
Controller 100 – 120 VAC/1Φ/50 – 60 Hz: 3 amp min.
200 – 240 VAC/1Φ/50 – 60 Hz: 3 amp min.
PNEUMATIC REQUIREMENTS
Nitrogen 2200 psi (152 bar)
