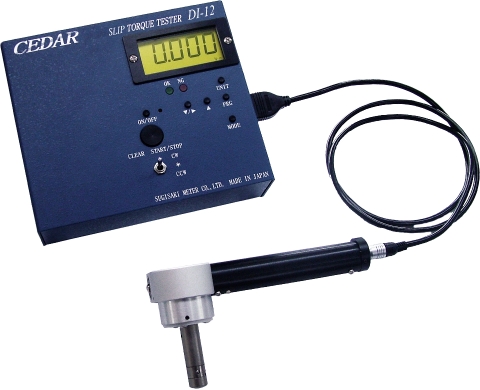

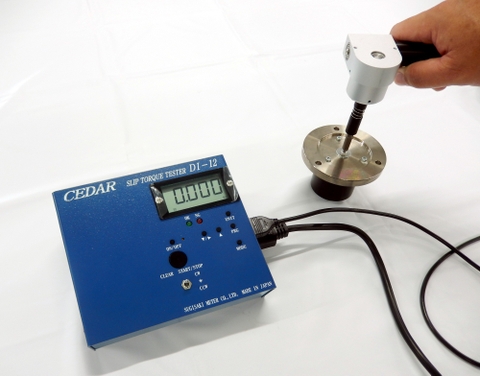

Slip torque tester

Form

DI-12-SL4

DI-12-SL02

DI-12-SL15

Accuracy guarantee range

0.030～4 N･m

1.5～200.0 mN･m

0.30～15 N･m

0.30～40 kgf･cm

0.015～2 kgf･cm

3.0～150 kgf･cm

0.30～35 lbf･in

0.015～1.74 lbf･in

3.0～130 lbf･in

Accuracy

±1%
(500 or less digit±5digit)

±0.5% (200 or less digit±1digit)

Display

The 4 figures digital display of LCD

The measurement direction

CW-CCW (right and left)
A display will be the display of only an absolute value.
Load of + (the CW direction) and - (the direction of CCW) is carried out to a data output.

Measure
ment
Mode

PP(peak)

The peak value of load is held. Destructive torque (the CW direction) -- it loosens and torque
(the direction of CCW) is measured.

TR(truck)

A display changes with load change.

PD
judging mode

The judgment of slip torque and the judgment of the yield point are performed.
(Only the CW direction)

Detection judging

If a slip torque value is detected, you will be told about by green lamp lighting.
(at the time of PD mode)

Measurement start value
setup

The value which starts measurement (start of judgment operation) is set up.
( 0.001 N-m unit from 0 N-m)

Continuation data output

A load torque value is outputted for every fixed time during measurement in PP＆PD mode.
By creating a torque wave, loci, such a slip torque, yield point torque, and destructive torque
can be judged.

Auto-power-off

After the neglect during 10 minutes, Power source OFF

Bit plug form

HEX 6.35

φ 4

6.35sq

Data output

ASCII format (baud rate 9600)

Outside
dimension

Detector

φ 44×190

φ 20×145

φ 55×270

Indicator

Weight

Detector

About 820g

About 80ｇ

About 1.4kｇ

Indicator

About 1kg

Accessories
(one piece each)

Bit ○ ＋ #1 #2

Bit ○ ＋ #0

An inspection report, a proofreading certificate, a traceability system figure
