Solar Panel I-V Measurement System
SS9600
Contact

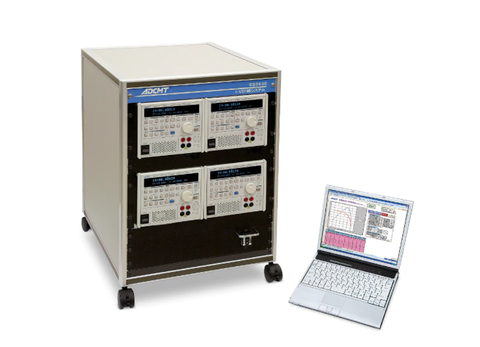

The SS9600 has six output ranges for solar panel evaluation: maximum 320 W (20 V/16 A, 40 V/8 A, 80 V/4 A) and maximum 280 W (7 V/40 A, 14 V/20 A, 28 V/10 A), that cover the I-V characteristics of most solar cells and panels.
By using DC voltage/current sources, not only I-V characteristic but also dark current characteristic evaluation in irradiation is available. The SS9600 can measure finely around Isc and Voc with the minimum step of 4ms by using the random sweep function in addition to the linear sweep function. That is, it can measure all types of solar cells including crystal, film and tandem solar cells.
Measurement items
- Short-circuit current (Isc)/Short-circuit current density (Jsc)
- Open-circuit voltage (Voc)
- Maximum output (Pmax)/Maximum output density
- Maximum output operating voltage (Vmax)
- Maximum output operating current (Imax)/Current density
- Fill factor (FF)
- Series resistance (Rs)/Resistivity
- Parallel resistance (Rsh)/Resistivity
- Current of specified voltage (Iv)/Current density
- Voltage of specified current (Vi)
- Conversion efficiency (η)
