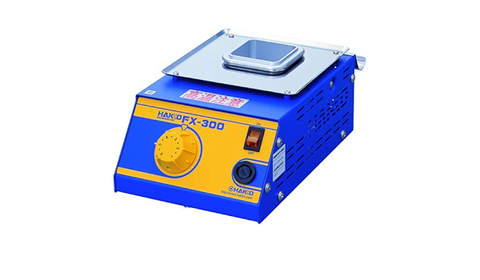

Soldering Pot
FX-300
Lead-free-solder compatible and compact knob type soldering pot provides quick start-up and easy replacement.
Compatible with lead-free solder
High-temperature specifications with a maximum temperature of 450°C (when using 50 × 50 square pot)
Quick start-up to set temperature
Start-up time is reduced by 10 minutes or more compared to conventional analog soldering pot (HAKKO 96).
Temperature is adjustable even during work.
Temperature can be adjusted by just turning a knob.
Easy pot replacement
The pot can be easily replaced by just loosening a screw. One unit can be used for various applications by changing pots for each solder type or by using pots of different sizes (50 × 50 square or 75 × 75 square).
*For your safety, be sure to wait for solder to completely cool down before replacing the pot.
If a digital soldering pot is required, see the FX-301B.
Option
Special Coating Solder Pot:
The special coating is for getting a long life by preventing the corrosion of the solder pot. We confirmed that the special coating solder pot had five times longer life than the standard one by our anti-corrosion test. It effects on both lead-free solder and solder with lead (eutectic).
- Because the anti-corrosion test was done by our way, longevity of solder pot may be different according to the usage conditions.
Standard solder pot
Special solder pot
|
Model No. |
FX-300 |
|
Power consumption |
195 W (100 V), 220 W (110 V), 200 W (120 V), 190 W (220 V), 205 W (230 V), 215 W (240 V) |
|
Dimensions |
143 (W) × 100 (H) × 220 (D) mm |
|
Weight |
1.7 kg |
Pot
|
Temperature range |
50 × 50 square : 200 to 450℃ |
|
Dimensions of solder pot |
50 × 50 square standard type : 50 (W) × 42.2 (H) × 50 (D) mm |
|
Molten solder capacity |
50 × 50 square : 0.85 kg |
