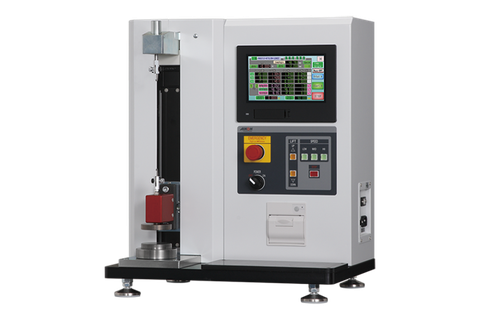

Spring tester

SW Series

Contact

Features

It can measure both compression and tension springs
Easy operate for condition setting and product number registration on touch panel screen
Product number registration can be registered up to 100th
Spring rate, Free length, Solid hight、Pre- tension, Step operation(Up to 3 steps)
Printing results by built-in Printer
Optional PC software available
The SW series supports Japanese, English, Simplified Chinese and Traditional Chinese.
The language can be selected by touch panel operation, It useful for globalization of production bases.

Call 0972000270 now for the best advice!

Status: Out of stock

Brand: AIKOH

Promo Code

Nhập mã NEOTECH SOLUTION để được giảm ngay 10$

Nhập mã TETGIAPTHIN để được giảm ngay 20$ tổng giá trị đơn hàng. Số lượng có hạn

	SW-1	SW-5	SW-10	SW-50	SW-100
Capacity	10N	50N	100N	500N	1kN
Force Resolution	0.0001N	0.001N	0.001N	0.01N	0.01N
Measuring range	1% to 95% F.S.( At the time of Force measurement or take Spring rate)	0.5% to 95% F.S.( At the time of Force measurement or take Spring rate)
Force Acuracy	±0.2%　F.S.
Unit of measurment	N（only in JAPAN ) At overses it can use unit kg and lb
Test Speed	5 to 600 mm/min
Max measurable length	205mm				390mm
length resolution	0.001㎜
Length accuracy	±0.05㎜（with in the range 150mm）
Compression plate diameter	Upper 20mm Lower 60mm	60mm
Hook for tensil test	1 type	2 type			1type
Size	W460×D350×H545 mm				W460×D350×H765mm
Weight	Approx 45kgs				Approx 70kgs
Power Supply	Selectable frorm AC100 to 110V , AC200 to 220V
