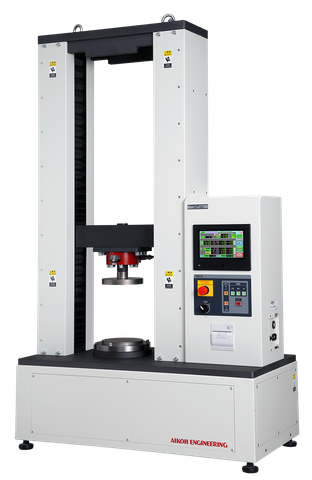

Spring tester

SWT Series

Contact

Features

It can measure both compression and tension springs
Easy operate for condition setting and product number registration on touch panel screen
Product number registration can be registered up to 100th
Spring rate, Free length, Solid hight、Pre- tension, Step operation(Up to 3 steps)
Printing results by built-in Printer
Optional PC software available
The SW series supports Japanese, English, Simplified Chinese and Traditional Chinese.
The language can be selected by touch panel operation, It useful for globalization of production bases.

Call 0972000270 now for the best advice!

Status: Out of stock

Brand: AIKOH

Promo Code

Nhập mã NEOTECH SOLUTION để được giảm ngay 10$

Nhập mã TETGIAPTHIN để được giảm ngay 20$ tổng giá trị đơn hàng. Số lượng có hạn

	SWT-100	SWT-200	SWT-500
Capacity	1kN	2kN	5kN
Force Resolution	0.01N	0.1N	0.1N
Measuring range	0.5% to 95% F.S.( At the time of Force measurement or take Spring rate)
Force Acuracy	±0.2% F.S.
Unit of measurment	N（only in JAPAN）At overses it can use unit kg and lb
Test Speed	5 to 600 mm/min
Max measurable length	600mm
length resolution	0.001㎜
Length accuracy	±0.1㎜（with in the range 500mm）
Compression plate diameter	150mm
Hook for tensil test	1type		Optional
Size	W876×D450×H1426 mm		W876×D450×H1600 mm
Weight	Approx. 190kgs		Approx. 200kgs
Power Supply	Selectable frorm AC100 to 110V , AC200 to 220V
