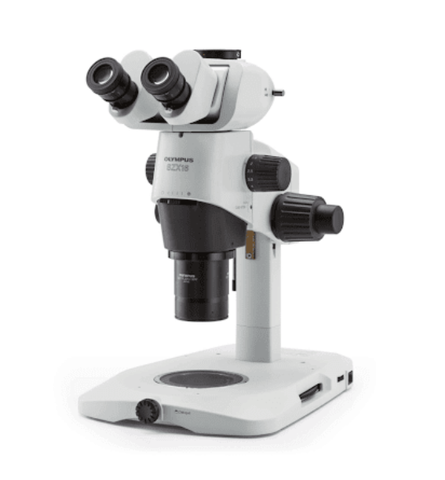

Stereo microscope SZX16

Double Objectives for 3.5x to 230x Zoom

With the parfocal objectives and two-position revolving nosepiece, switching between objectives is very quick and easy, requiring little refocusing. Therefore, with the 0.5x and 2.0x objectives, the uninterrupted magnification range is 3.5x - 230x. This represents an effective zoom ratio of 65.7:1.

Ergonomic Observation Tube and Extendable Eyepoint Adjuster

The SZX2 series features observation tubes with an optimized convergence angle designed to enable users to make observations from a natural position that minimizes eye fatigue. This solution effectively eliminates eyestrain during long periods of observation.
Our long tilting trinocular tube (SZX2-LTTR) improves the ergonomics of our stereo microscopes. This trinocular can be adjusted from 5 to 45 degrees to facilitate a more natural head and neck position while working. In addition, the eyepoint adjuster (SZX2-EEPA) enables users to raise or lower the eyepoint within a 120 mm range to accommodate users of different heights. The combination of these ergonomic components helps reduce stress and fatigue by keeping users in a more natural posture while they’re working.

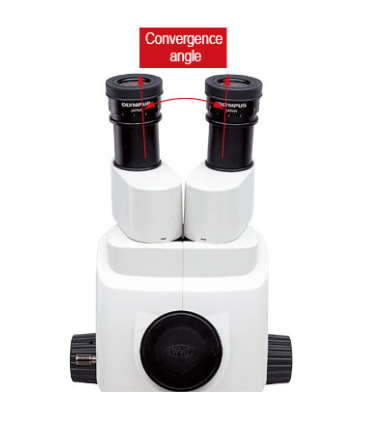

Convergence Angle

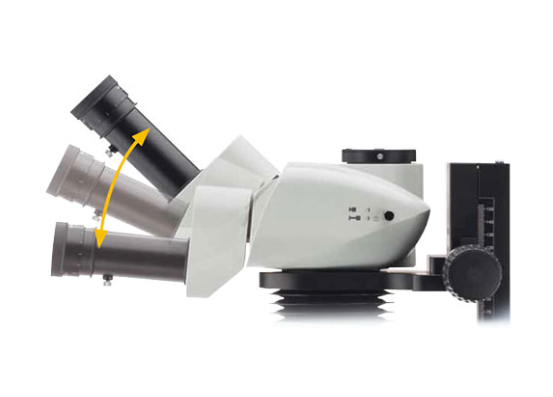

Tilting Observation Tube

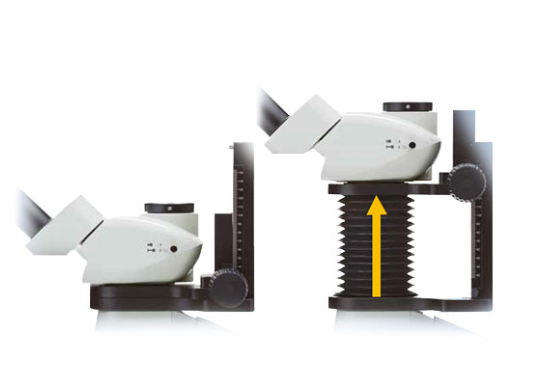

Extendable Eyepoint Adjuster

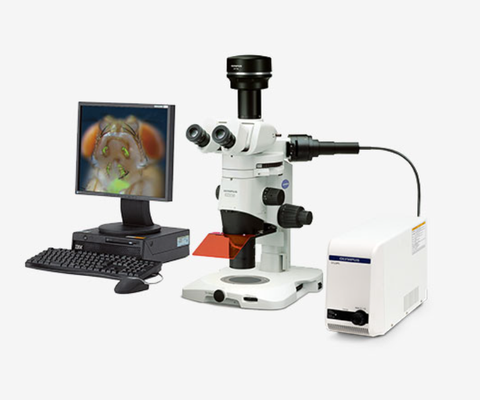

Digital Imaging and Documentation

The SZX16 can also be equipped with a trinocular tube and Olympus DP series digital camera for high-resolution imaging and research documentation. DP series cameras offer the high sensitivity for a wide range of applications, including high-sensitivity fluorescence imaging, and can be easily controlled using Olympus cellSens software.

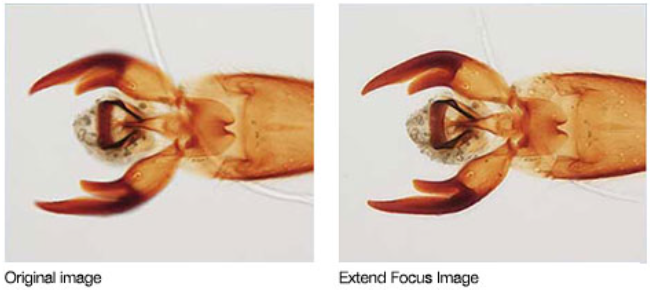

cellSens Extended Focus Imaging

Create a single in-focus image from successive image planes as the focus knob is turned using the Extended Focus Imaging (EFI) function. EFI composite images can also be created directly from previously captured Z-stacks.
