TYPE:14FW
Supports a Variety of Research Topics

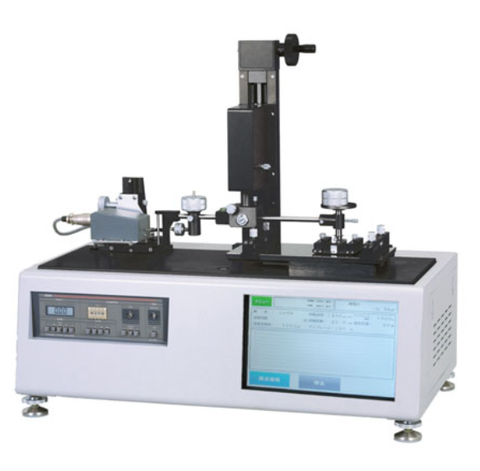

A DC servo motor (FW type) permits a linear movement of the mobile base when loaded with a test piece.
The resistance transmission mechanism, consisting of the vertical arm and horizontal arm with two fulcrums, conveys the resistance received from each adapter to the detector of the load converter.
A zero balancer is provided at one end of the horizontal arm to balance the dead weight of each adapter so that the vertical loading becomes zero.
In addition, at the other end of the arm there is an adaptor holder, and directly above this there is a weight pan on which weights up to 1000g can be applied.
The detected resistance is amplified by the dynamic strain amplifier and can be output to each recorder.
An easy to use touch panel has been utilized in the operation and display units.
Travel Speed |
5mm-6000mm/min |
Driving Motor |
DC Servo Motor |
Drive Method |
Rack and Pinion |
Travel Distance |
1-100mm |
Travel Mode |
Single Mode: Auto Stop After Traveling Set Distance |
Measurement Range |
0-100gf or 0-2000gf |
Table Dimensions |
240mm×120mm |
Safety Equipment |
Overloading Safety Equipment |
Dynamic Strain Amplifier |
Zero Point Adjustment: Digital Servo Auto Zero Resetting Method |
Usage Environment |
0-50℃ RH 85% or less, non-condensing |
Power Supply |
AC100V 50/60Hz |
Overall Dimensions |
Main Unit: W630mm x D350mm x H580mm |
Standard Accessories |
Loading Converter 1 unit, Scratching test pin 1 piece, ASTM flat indenter 1 set, |
