Switch feeling tester
GT-FL200
Contact

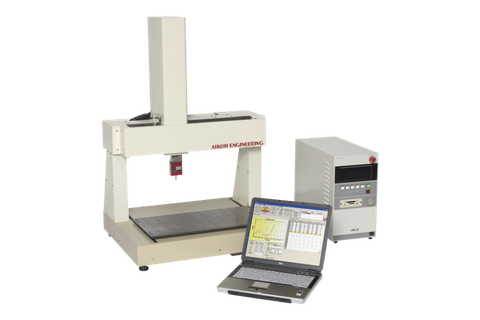

A tester dedicated to force-displacement feeling test of such devices as various types of switches, keyboards, dome switches and rubber switches.
Three axes of X, Y and Z can be controlled automatically. The tester is capable of testing 16 ON/OFF contacts maximum. The tester is equipped with a jog dial to facilitate teaching. Waveforms are displayed in real time on the amplifier and PC screen.
Switch feeling tester
Model: GT-FL Series
Maker: AIKOH ENGINEERING CO.,LTD
Example of use
- Tact switch feeling test
- Keyboard switch feeling test
- Metal dome switch feeling test
| GT-FL200 | |
| Z axis (test) specifications | |
| Max. force | 50N（5kgf） |
| Drive method | AC servo motor |
| Control motion | Up/down |
| Drive range | 0～200mm |
| Force measuring range | 0～50N（0～5kgf） |
| Force resolution | 0.001N（1mN） |
| Force accuracy | Depends on the load cell used. |
| Detector | Rotary encoder |
| Displacement measuring range | 0～200mm |
| Displacement resolution | 0.001mm |
| Display accuracy | ±0.05mm |
| Test speed range | 0.1～50mm/min |
| Moving speed range | 1～15mm/sec. |
| Analog output | ±10 V (force, displacement) |
| Dimensions | W380×D530×H750mm |
| Mass | Approx. 25kg |
| Power supply | AC100V/AC200～230V |
