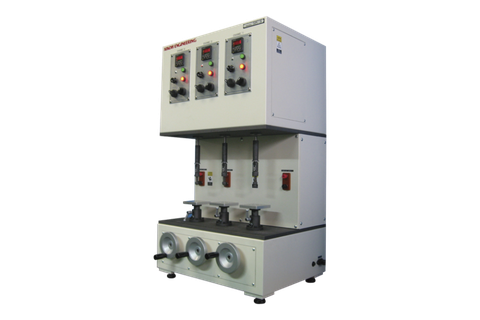

Switch, silicone endurance tester
SR Series
Contact
Example of use
- Endurance test of key switches, silicone rubber switches, keyboards, etc.
- Up to five channels available.
|
MODEL-SR-1 |
MODEL-SR-3 |
MODEL-SR-5
|
|
|
Major application |
Endurance test of electronic parts |
||
|
Test speed |
1 – 10 cycles/sec. |
||
|
Max. push force |
1 – 5 kg/CH (Depends on speed) |
||
|
Test stroke |
10 mm (fixed) |
||
|
Pressing shaft |
Φ10mm |
||
|
Pressing plate |
60×60mm |
||
|
Sample table move range |
50mm |
||
|
Sample table move amount |
2 mm/one turn of the handle |
||
|
Sample table size |
80×80mm |
||
|
Setting counter |
6 digits/CH |
||
|
Power supply |
Single phase, 100 VAC |
||
|
Standard set |
Tester, sample fixing jig |
||
|
Options |
Damper jig |
||
