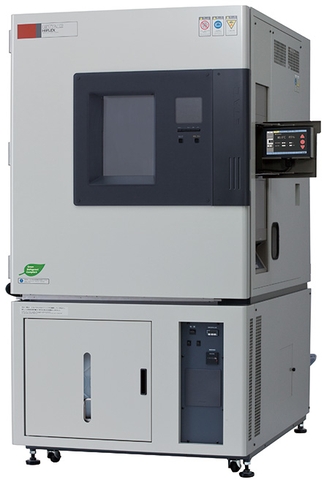

Temperature & Humidity Test Chamber

Low GWB Refrigerant R-448A is adopted as the best environmental-friendly technology.
HIFLEX NEO series

• Original “Smart controller” equipped to all models as standard contributes and flexible operation

As chamber control application software is installed in “smart controller”, flexible operation, data preservation, etc. is enabled through direct control by using external terminals.

• Power-saving/low noise/high performance

The latest DC inverter rotary compressor is equipped. Power consumption is reduced by a maximum of 58% (our comparison).

• Minimization of humidification water

Unique updated function supplying humidification water realizes 1000 hours continuous operation without humidification water supply subject to +85℃/85%RH operation.

• Space saving

Space saving is realized by state-of-art mechanism.
User-friendly design by adopting cable port at both sides.

• Temperature/humidity controllable range (FX type)

New feature from user-friendly view point

• 1000 hours continuous operation with 85℃/85%RH

Because of unique vapor collection system as standard feature, 1000 hours continuous operation with 85℃／85％RH without humidification water supply is realized. As collected vapor is utilized as condensed water, conductivity is not raised. (excluding SXN type)

• Program transfer function NLPE（Neo Local Program Editor）

Program prepared by external terminal, like PC, is transferred to main body easily via USB memory and utilized it.

High reliability

• Reliable refrigerating circuit

Reliable rotary compressor is adopted.Temperature ramp-down up to −40℃ is guaranteed. Excellent refrigerator capacity could not effect significant influence even with optional viewing window.

• Expansion of ambient temperature range

Because of reliable rotary compressor, ambient temperature range is expanded to +40℃ from existing +35.
