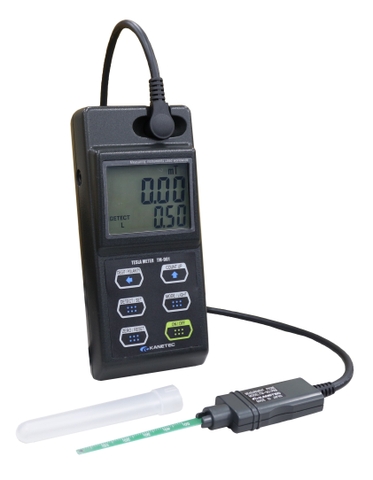

TM-901 EXP
Application
Model |
TM-901 EXP |
|||
Object to detect |
DC magnetic flux density AC magnetic flux density |
|||
Unit of measurement |
mT/G selection |
|||
Measurement range |
0-3000.0mT |
|||
Measjrement moede |
Measuring range |
Resolution |
Indication accuracy |
|
Measurement mode |
DC x 1 |
0-2000.0mT |
0.1 mT |
±(5% of rdg. + 3digit) |
Measuring range |
200.1-3000.0mT |
1 mT |
±(5% of rdg. + 10digit) |
|
Resolution |
DC x 10 |
0-3000.0mT |
0.01 mT |
±(3% of rdg. + 5digit) |
indication accuracy |
AC |
0-150.0mT |
0.01 mT |
±(5% of rdg. + 20digit) |
150.1-300.0mT |
0.1 mT |
|||
300.1-1500.0mT |
1 mT |
Function |
Zero reset |
Polarity judgment |
Max. detect value hold |
Auto power off(Cancellable) |
|
Output |
Digital output(USB)/Analog output |
|
Indication |
Detected value |
Digital |
Polarity |
Alohabets (N/S) |
|
Operation temperature |
0±40℃ (104°F) |
|
Power source |
.Battery:Size AA (1.5V)x4poeces |
|
.External power source 5-6 VDC (AC adapter/USB feed) |
||
Dimensions |
143(5.62in)mm high x64(2.51in)mm wide x30(1.41in)mm thick |
|
Mass |
Approx. 250g(0.62lb) (batteries Á probe included) |
|
Accessories |
Probe, batteries, carrying case |
|
Optional |
Axial probe (TM-801 AXL) |
|
Reference magnetic field (TM-SMF,TM-AMF) |
