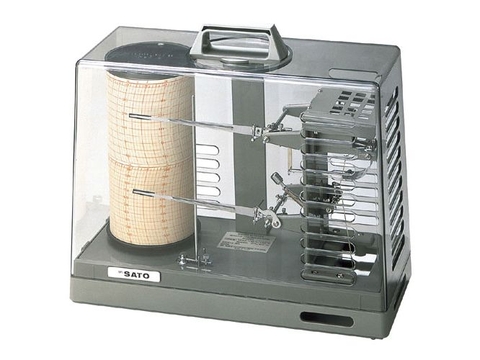

Thermohygrograph
NSII-Q
Please ensure that you purchase chart paper with a temperature range of -15 to 40°C and a humidity range of 0 to 100% RH. It's important to confirm the temperature range carefully in advance, as we also offer paper with different temperature ranges.
|
Cat.No |
7210-00 |
|
|
Product name |
Sigma II Thermohygrograph, Quartz Type (−15/40°C, 0/100%rh) |
|
|
Model name |
NSII-Q |
|
|
Measuring range |
Temperature |
−15 to 40°C |
|
Humidity |
0 to 100%rh without condensing |
|
|
Accuracy |
Temperature |
±1°C (10 to 30°C) ±2°C (other) |
|
Humidity |
±3%rh (20 to 95%rh, 15 to 25°C) ±5%rh (other) |
|
|
Minimum scale |
1°C / 1%rh |
|
|
Detectors |
Bimetallic strip, bundle of human hair |
|
|
Chart rotation |
1, 7, or 32 days counted by internal quartz clock |
|
|
Applicable pen |
Cartridge pen (violet)(Cat. No. 7238-04) which lasts 6 months in 7-day rotation mode |
|
|
Dimensions |
336 (W) ×295 (H) ×148 (D) mm |
|
|
Weight |
3.1 kg excluding batteries |
|
|
Power |
C battery x2 |
|
|
Battery life |
Approx. 1 year if used in 7-day rotation mode |
|
|
Standard accessories |
55 sheets of 7-day chart for 1-year use (Cat. No. 7210-62) x1, C zinc-carbon battery x2, instruction manual |
|
