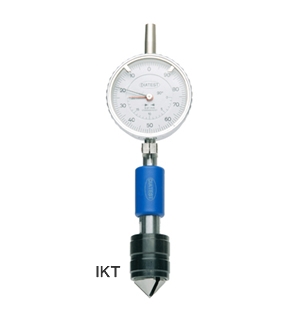

IKT series
Contact
Diatest is a company that manufactures high-precision measuring equipment and provides complex solutions for your quality assurance. However, I could not find specific information about the Diatest internal taper gauge that can instantly and accurately measure the inner diameter of tapered holes and the width of tapered grooves.
Specification
Đơn vị: mm
| Người mẫu | góc | Phạm vi đo lường | Người mẫu | góc | Phạm vi đo lường |
|---|---|---|---|---|---|
| IKT-90-1 IKT-90-1-2 IKT-90-2 IKT-90-3 IKT-90-4 IKT-90-5 IKT-90-6 |
90° | 0,5－20 10－30 20－40 40－60 60－80 80－100 100－120 |
IKT-60-1 IKT-60-5 IKT-60-6 IKT-60-7 IKT-60-8 IKT-60-9 IKT-60-10 |
60° | 0,5－12 10－21 20－31 30－41 40－51 50－61 60－71 70－81 80－91 90－101 100－111 110－121 |
|
IKT-127-1 IKT-127-3 IKT-127-6 |
127° |
0,5－20 40－60 |
