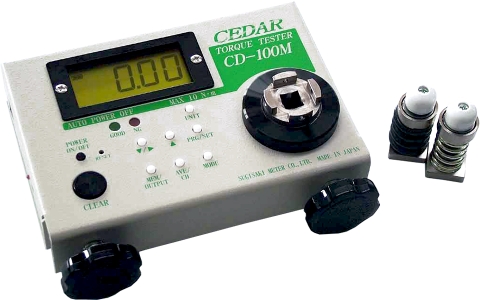

CD-100M/10M
Model name |
CD-100M |
CD-10M |
Measuring range |
0.10 ~ 10 N・m |
0.010 ~ 1 N・m |
0.10 ~ 10 kgf・cm |
0.10 ~ 10 kgf・cm |
|
0.10 ~ 9 lbf・in |
0.10 ~ 9 lbf・in |
|
Accuracy |
±0.5% or ±2digit |
|
Display |
The 3.5 figures digital display of LCD |
|
The measurement direction |
CW-CCW (right and left) |
|
Measurement Mode |
T-R(track) , P-P(peak to peak) , P-D(Peak-Down) , C(Real-time Output) |
|
High and low limits judging |
High and low value are measurement within the limits, and can be set up. |
|
The Maximum, the |
It displays the maximum, the minimum, average value, |
|
Real-time Output |
Load torque value is outputted every about 1/180 second. |
|
Data memory counts |
800 data |
|
Data output |
ASCII format (baud rate 19200) |
|
Auto-power-off |
After the neglect during 10 minutes |
|
Power supply |
Ni-MH chargeable battery |
|
Charge time / use time |
Charge about 3 hours / About 12 hours use consecutive at full charge time |
|
Socket fit mouth |
20mm/9.5mm |
|
indicator size/ weight |
160(W)×125(D)×55(H) / 1kg |
|
Accessories |
Measurement joint SJ-50, SJ-10K |
Measurement joint SJ-10 |
4 bits HEX opposite side 6mm |
4 bits HEX opposite side 5mm |
|
An AC/DC adapror |
||
Exclusive case |
||
Result of calibration , Certification on calibration , Traceability system figure |
