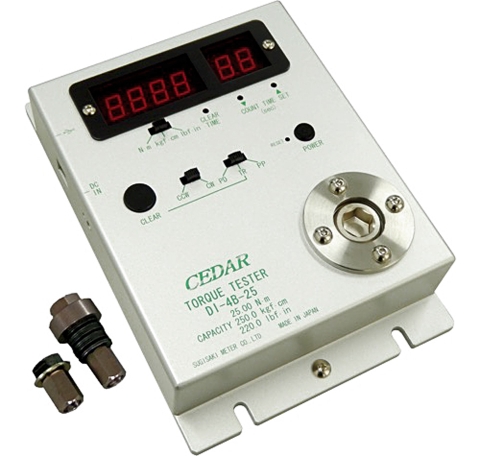

Torque tester

DI-4B-25

Contact

Quantity

Out of stock (Please contact us directly)

Features

Measurable up to 25 N · m
Equipped with blow counter for impact tool
Enable to measure with socket attached
Attached Soft joint (for tightening elastic material) and hard joint (for tightening rigid material)
Data acquisition software can be downloaded for free

Category Compare 0 Cart Call now

Call 0972000270 now for the best advice!

Status: Out of stock

Brand: CEDAR

Promo Code

Nhập mã NEOTECH SOLUTION để được giảm ngay 10$

Nhập mã TETGIAPTHIN để được giảm ngay 20$ tổng giá trị đơn hàng. Số lượng có hạn

See more promo codes Collapse

Overview
Specification
Catalog

High luminosity LED display

LED is adopted as a display part.
A numerical value can be read clearly after neglect for 5 minutes.
also in a dark place.

Auto-power-off

A power source is automatically turned off

Battery drive

It can be used being unable to choose a place and
convenient for carrying by the spot.
An exclusive charger is attached.

Display zero clearance

The zero clearance of the measurements is
automatically carried out in setting time.
(A setup in 0.5 - 3 seconds is possible)

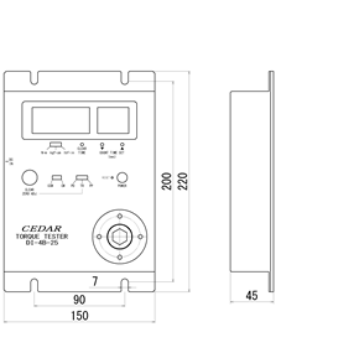

Model name	DI-4B-25	Appearance figure
Measuring range ( at the time of Track)	0.30～25 N･m 3.0～250 kgf・cm 3.0～220 lbf・in
Accuracy	±0.5% (or less 499±3digit)
The display method	4 figures LED display
The measurement direction	CW-CCW (right and left) It is selection measurement by the change switch.
Mode	Track, Peak, Peak-Down ( Operation is 70digit or more)
Auto clear time	In 0.5 - 3.0 seconds (0.5-second interval, an indication is automatically given zero.) It is a manual zero clearance by 0.0-second setup
Blow measurement range	Zero to 99 blow
Blow Measurement time	0.1 - 9.9 seconds
Data output	ASCII format (baud rate 19200)
Appearance	Dimension: 150(W) x220(D) x74 (H)	About the method of application of an attachment
Appearance	Weight: About 2.1kg
Power supply	Ni-MH battery Auto power OFF (after [ OFF ] the neglect during 5 minutes)
Charge time / use time	At the time of charge 6 hour /, and the maximum charge Continuation about 8-hour use		Soft joint 17mm of hexagon-head-bolt opposite neighborhoods Rotate about three times by the time a nut or a bolt arrives at a bearing surface and reaches all torque For elastic body..
The contents of a set （one piece each）	Hard joint (M10) / Soft joint (M10) / 9.5 sq. drive Socket (Hexagon head socket 17)		Hard joint 17mm of hexagon-head-bolt opposite neighborhoods Rotate about 1-/10 by the time a nut or a bolt arrives at a bearing surface and reaches all torque. For rigid object.
	6.35Hex bit (Hexagon head socket 17)
	Receipt case
	AC/DC adaptor (Please choose from 120V and 230V.)
	Inspection-report / proofreading certificate /Traceability system figure
