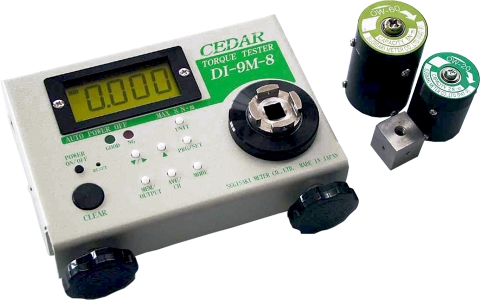

DI-9M-8/08
Enable to save 5 channels of pass/fail judgement criterion, and enable to change settings by switch channels even if the tightening term changes.

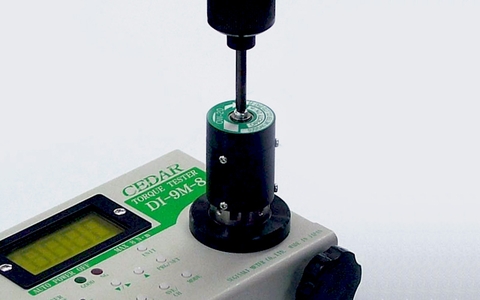

Due to "OW Joint", able to mesures effectively without rewinding.
Specification Specification |
DI-9M-8 |
DI-9M-08 |
Measuring range |
0.020-8 N・m |
2.0-800 mN・m |
0.20~80 kgf・cm |
0.020~8 kgf・cm |
|
0.20~70 lbf・in |
0.020~7 lbf・in |
|
Accuracy Accuracy |
±0.5% (499 digit or less ±3digit) |
|
Display Display |
The 4 figures digital display of LCD |
|
The measurem The measurement direction ent direction |
CW-CCW (right and left) |
|
Zero return by o Zero return by one touch ne touch |
Return to zero by pressing clear button. |
|
Measurement Mode Measurement Mode |
Track , P-P(peak to peak) , P-D(Peak-Down) , C(Real-time Output) |
|
High and low limits jud High and low limits judging function ging function |
High and low value are measurement within the limits, and can be set up. |
|
Real-time Output Real-time Output |
Load torque value is outputted every about1/ 180 second. |
|
The Maximum, the mini The Maximum, the minimum, and the |
The maximum, the minimum, average value, and the data number of 30 data are |
|
Data Output Data Output |
ASCII format (baud rate 19200) |
|
Auto power s Auto power save ave |
10 minutes no use, automatically switch off. |
|
Power supply Power supply |
Ni-MH chargeable battery |
|
Charging time Charging time |
About 3hours |
|
Continuo Continuous working time us working time |
About 12hours |
|
clearance clearance |
It is a display clearance in set-up time. (0.1 - 3.0 sec) |
|
Socket size Socket size |
□ 20mm/ □9.5mm |
|
Dimension / Weight Dimension / Weight |
W:160×D:125×H:55 / About 1kg |
|
Recommend buffer accessories |
Measuring joint |
Measuring joint |
Cube (with 5 sides screw hole) 20x20x20 |
||
AC/DC adaptor |
||
Exclusive receipt case |
||
An inspection report, a proofreading certificate, a traceability system figure |
