Torque tester
Torque tester
Torque tester
Torque tester

Torque tester

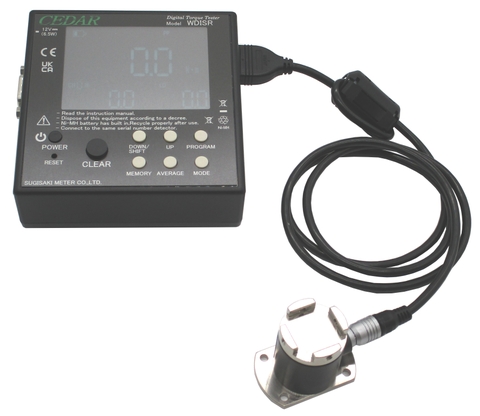

WDISR-IPS

Contact
Quantity
Out of stock (Please contact us directly)

Features

  • A color display that can display various information.
  • Data output is standard equipment for both USB and RS232C.
  • Numerical values such as pass / fail conditions can be set up to 10 channels.
  • The pass / fail judgment is displayed in color for easy understanding.
  • Built-in battery drive.
  • Various commands can be input from PLC or PC.
  • The WDISR-IPS series includes WDISR-IPS05C, WDISR-IPS5C, and WDISR-IPS20CL.
Category Compare 0 Cart Call now
0972000270
Call 0972000270 now for the best advice!
Status: Out of stock
Brand: CEDAR
Promo Code Promo Code
Nhập mã NEOTECH SOLUTION để được giảm ngay 10$
Nhập mã TETGIAPTHIN để được giảm ngay 20$ tổng giá trị đơn hàng. Số lượng có hạn
See more promo codes Collapse

It works with a personal computer or PLC to manage torque measurement more highly.
Can be installed to manage various torque tools with a small detector.

Model

WDISR-IPS05C

WDISR-IPS5C

WDISR-IPS20CL

Applications

It is a torque measuring equipment to measure the tightening torque of tightening tools (electric screwdriver,
torque screwdriver, etc.) in screw tightening work.

Power supply

Internal battery (12 hours continuous operation time, 3 hours charging time)

Rate input voltage

12V DC

Measurement
range

2.0 ~ 500.0 [mN-m]

0.020 ~ 5.000 [N-m]

0.20 ~ 20.00 [N-m]

Measurement
Unit

kgf-cm / lbf-in / mN-m / cN-m

kgf-cm / lbf-in / N-m / cN-m

Accuracy

±0.5% (If 499 digit or less, ±3 digit.)

Sampling rate

1000 data / 1sec

Measurement mode



Measurement mode

Data output

Contents

Peak hold

PP

○

Measure the peak torque.

Peak down

PD

○

Measure the firs peak torque.

Real time output

C

○

The data output cycle is approximately 180 data / 1
second.

Track

TR

－

Mainly used for calibration.

If the measurement mode is TR, the data isn’t outputted.

Data output

Wired (ASCII format)

Memory size

800 data

Auto power off

Power off after 10 minutes of non-use

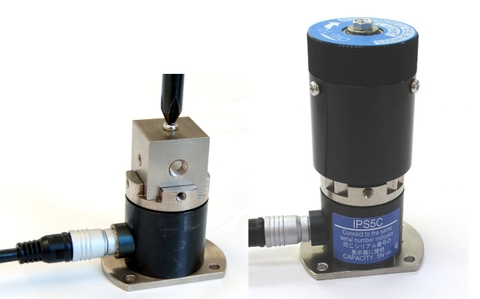

Accessories, Attachments

Detector (Refer below)

Detector cable

Joint OW-025

Joint OW-10

Joint OW-20

Cube (H20×W20×D20)

SC-1
with the screw hole of M1, M1.2,
M1.4, M2 and M3

SC-2
with the screw hole of M2.6, M3,
M4, M5 and M6

SC-3
with the screw hole of M4, M5,
M6, M8 and M10

AC adaptor

Rubber foots

Result of calibration, Certification on calibration, Traceability system figure
