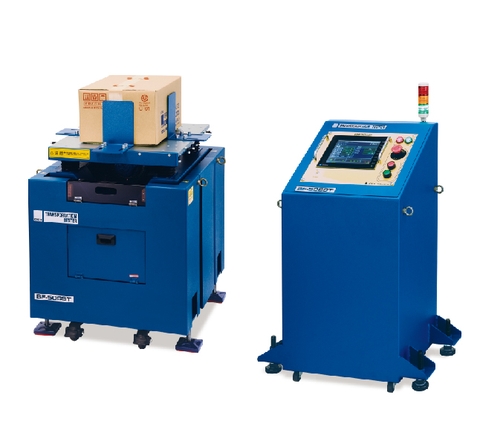

BF-50SST
New innovative TRANSPORTATION TESTER "Triaxial Simultaneous Vibration" + "Shock"!
Vibration direction |
Up/down, right/left, front/rear (triaxial simultaneous vibration) |
Adjustable displacement range |
0.2~2.6mmP-P |
Vibration table |
500 x 600mm with L type jig |
Frequency range |
10 - 67Hz (0.1Hz unit) |
Acceptable acceleration range |
98m/s² (10G) |
Maximum loading weight |
50kg |
Operation mode |
Vibration: MANUAL / SWEEP / TRANSPORTATION / COMBINATION Shock: Front / Back / Vertical / Mix |
Shock amount setting |
Adjustable by positioner |
Shock cycle setting |
Adjustable at intervals of 6 seconds or longer |
Temperature |
0 - 40℃ (No condensation) |
Power source |
AC200 - 240V 3phase 50/60Hz 5A or below |
Dimensions & weight |
Vibration unit : 610(W) x 760(D) x 740(H)mm, approx. 270kg Control unit : 650(W) x 460(D) x 900(H)mm, approx. 65kg * Height of a pilot lamp is not included. |
Standard accessory |
3-Dimensional Wireless Vibration Recorder / 1 set * PC not included. |
