Ultrasonic Generator

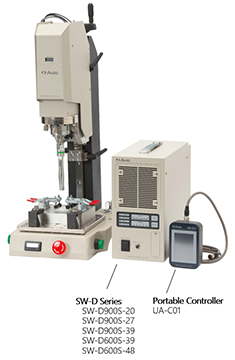

SW-D
SW-D series has 5 models of 20kHz～48.5kHz, 600W/900W with various control mode and monitoring function, which is applicable to wide variety of work.
It is the high-end ultrasonic welder with Ethernet capability and tractability.
- High-speed and stable welding
- Small size, Vertical type, and Easy setting with remote control
- Selectable Oscillation Mode for Optimal Welding Condition
- Oscillation Amplitude is Continuously Variable between 30-100%
- Real-time Monitoring for OK/NG Checking
- Many Interfaces for IoT
Specification
|
Items |
SW-D900S-20 |
SW-D900S-27 |
SW-D900S-39 |
SW-D600S-39 |
SW-D600S-48 |
||||
|
Max. Output Power |
900W |
600W |
|||||||
|
Frequency |
20kHz |
27kHz |
39kHz |
39kHz |
48.5kHz |
||||
|
Oscillation Method |
Digital ATHMOS |
||||||||
|
Amplitude Adjustment |
30～100% (1% step) |
||||||||
|
Oscillation Control Mode |
Time / Energy / Peak Power / External Sensor / Continuous |
||||||||
|
Monitor Function |
Frequency / Oscillate Time / Energy / Peak Power / External Sensor |
||||||||
|
Parameter Memory |
31 |
||||||||
|
Interface |
I／O / Analog / RS-232C / LAN / CF Card |
||||||||
|
Input Power |
Single Phase AC100～240V ±10% |
||||||||
|
Power Consumption |
1,350VA |
900VA |
|||||||
|
Operating temperature |
5~50℃ (No freezing) |
||||||||
|
Operating Humidity |
Less than 90% (No condensation) |
||||||||
|
Dimension |
W150×D370×H310mm (Including protrusions) |
||||||||
|
Weight |
Approx. 8.5kg |
||||||||
Portable Controller
|
Items |
UA-C01 |
|
|
LCD |
Size |
3.5 inch TFT LCD |
|
Resolution |
W320×H240 |
|
|
Color |
4,096 colors |
|
|
Touch Panel |
Method |
RESISTANCE FILM TYPE |
|
Buzzer |
available |
|
|
Language |
English |
|
|
Power Input |
Supplied From Welding |
|
|
Cable Length |
1.5m |
|
