Ultrasonic Handheld Welder
HW-D
Specification
|
Model |
High-end type |
Standard type |
||||
|
HW-D250H-28 |
HW-D250H-40 |
HW-D200H-60 |
HW-D250S-28 |
HW-D250S-40 |
||
|
Maximum output |
280W |
240W |
280W |
|||
|
Rated output |
250W |
200W |
250W |
|||
|
Continuous output |
180W |
140W |
180W |
|||
|
Frequency |
28kHz |
40kHz |
60kHz |
28kHz |
40kHz |
|
|
Oscillation method |
Digital ATHMOS（Automatic frequency tracking）method |
|||||
|
Oscillation control mode |
Timer, Energy, Peak power, Continuous oscillation (Selectable) |
|||||
|
Setting range |
Timer |
0.01 to 10.00s (0.01s step) |
||||
|
Energy |
10 to 3000J (10J step) |
|||||
|
Peak power |
50 to 250W |
40 to 200W |
50 to 250W |
|||
|
Oscillation |
Valiable 30 to 100% (5% step) |
Fixed (100%) |
||||
|
Up slope |
50/100/200/500ms Selectable |
50ms Fixed |
||||
|
Display |
7 segment 4 digit LED, Status display LED |
|||||
|
Welding result display function |
Frequency(kHz), Oscillation time(s), Energy(J), Peak power(W) (Final result) |
|||||
|
Protection function |
Phase, Over current, FET, Over voltage, Over heat, Over time |
|||||
|
Interface |
I/O, Analog |
|||||
|
Power input |
AC100 to 240V single phase, 50/60Hz |
AC100V 50/60Hz |
||||
|
Power Consumption |
370VA |
300VA |
370VA |
|||
|
Environmental temprature |
5 to 40℃ |
|||||
|
Environmental humidity |
30 to 85%, No condensation |
|||||
|
Size |
W100×D250×H210mm |
|||||
|
Weight |
2.5kg |
|||||

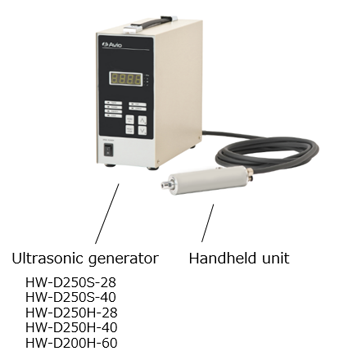

Handheld unit
|
Model |
W2005-28-HP-P |
W2005-40-HP-AL |
MA1P200-60 |
|
Frequency |
28kHz |
40kHz |
60kHz |
|
Transducer trigger switch |
Push button type |
||
|
Housing case |
Plastic |
Aluminum |
|
|
Hanging hook |
Yes |
N/A |
|
|
Transducer cooling joint |
Yes |
N/A |
Yes |
|
Output cable length |
2.5m |
||
|
Outside diameter of grip |
37mmφ |
31mmφ |
|
|
Weight |
350g |
200g |
|
