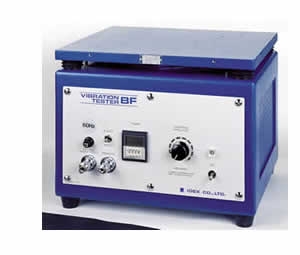

VIBRATION TESTER
BF-25H-100/200
Contact
Compact and light desktop type
|
Vibration direction |
Up/down |
|
Adjustable displacement range |
0 - 1.5mmP-P |
|
Vibration table |
400 x 350mm |
|
Frequency range |
Fixed frequency type (50 or 60Hz) |
|
Acceptable acceleration range |
50Hz type : 73.5m/s² (7.5G) 60Hz type : 98m/s² (10G) |
|
Maximum loading weight |
25kg |
|
Operation mode |
Timer, continuous operation |
|
Temperature |
0 - 50℃ (No condensation) |
|
Power source |
AC100V 50 or 60Hz (*) AC200V 50 or 60Hz (*) |
|
Dimensions & weight |
400(W) x 373(D) x 310(H)mm / approx. 30kg |
