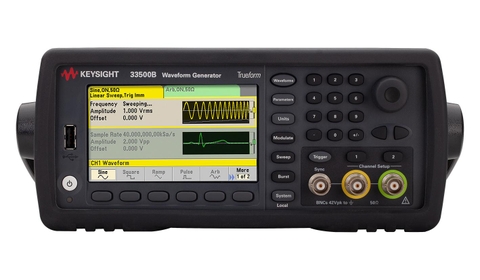

Waveform Generator
33509B
Exclusive Trueform technology
- Unmatched capabilities for generating a full range of signals for your most demanding measurements
- Sine waves with 5x lower harmonic distortion for more pure signals
- Pulses up to 20 MHz with 10x less jitter for more precise timing
- Optional point-by-point arbitrary waveform capability with sequencing for more accurate representation of user-defined signals
Instrument features
- 160 MSa/s sampling rate for higher time resolution arbitrary waveforms
- 16-bit resolution with 1 mVpp to 10 Vpp amplitude for greater amplitude accuracy
- With arb upgrade 1 MSa/channel standard waveform memory, optional 16 MSa/channel for your longest waveforms

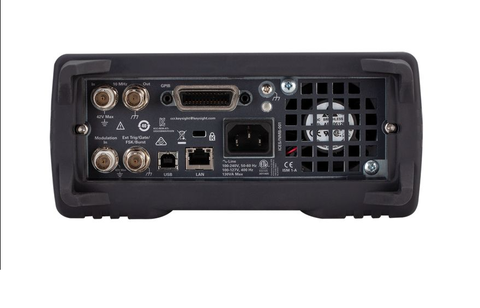

- USB, LAN (LXI-C), GPIB standard for quick and easy connectivity to PC or network
Waveform creation and editing (with arb upgrade)
- Create a waveform from the front panel using the built-in editor
- Capture a waveform from an oscilloscope and download it to the generator
- Create a waveform in MATLAB, Microsoft® Excel, etc. and download it to the generator
|
Model number |
33509B |
33510B |
33519B |
33520B |
33611A |
33612A |
33621A |
33622A |
|
33511B |
33512B |
33521B |
33522B |
|
|
|
|
|
|
Maximum frequency |
20 MHz |
20 MHz |
30 MHz |
30 MHz |
80 MHz |
80 MHz |
120 MHz |
120 MHz |
|
Number of channels |
1 |
2 |
1 |
2 |
1 |
2 |
1 |
2 |
|
Option MEM |
Increase arb waveform memory to 16 MSa/Channel |
Increase arb waveform memory from 4 MSa/Channel to 64 MSa/Channel |
||||||
|
Option SEC |
Enables NISPOM and file security |
|||||||
|
Option OCX |
Oven-controlled frequency reference for improved stability, jitter, and phase noise |
|||||||
|
Waveforms |
||||||||
|
Standard |
Sine, Square, Ramp, Pulse, Triangle, Gaussian Noise, PRBS (Pseudorandom Binary Sequence), DC |
|||||||
|
Built-in arbitrary |
Cardiac, Exponential Fall, Exponential Rise, Gaussian Pulse, Haversine, Lorentz, D-Lorentz, Negative Ramp, Sinc |
|||||||
|
User-defined arbitrary |
Up to 1 MSa (16 MSa with Option MEM) with multi segment sequencing |
Up to 4 MSa (64 MSa with Option MEM) with multi segment sequencing |
||||||
|
Operating modes and modulation types |
||||||||
|
Operating modes |
Continuous, Modulate, Frequency Sweep, Counted Burst, Gated Burst |
|||||||
|
Modulation types |
AM, FM, PM, FSK, BPSK, PWM, Sum (carrier + modulation) |
|||||||
