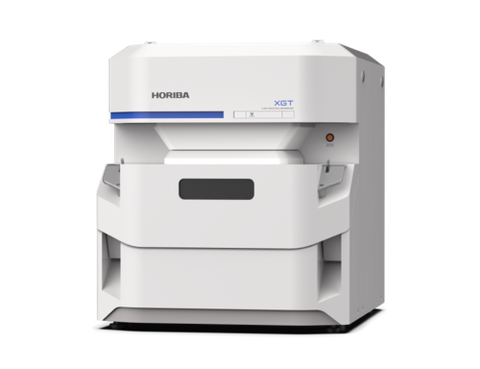

XGT-9000
Higher sensitivity and wider detection range by new detection systems
With new advanced detection systems, the XGT-9000 Pro is able to achieve higher sensitivity than before and the XGT-9000 Expert provides you the ultimate performance in sensitivity and the widest detectable element range. Having improved sensitivity reduces measurement time and boost your work efficiency while wider detectable element range expands your application possibilities.
High quality macro and micro imaging with multiple probe selection
The XGT-9000 Series provides ultimate performance and flexibility with its well designed excitation system, including high output X-ray generator (up to 50 kV and 1000 µA) and a wide selection of probe spot sizes down to 10 microns and up to 1.2 mm. Multi-probes can be installed in the instrument and switchable on the software. It allows high quality fast imaging in macro and micro level without compromising the needs of spatial resolution and measurement time over large map area. Two ultra high intensity probes of 15 µm and 100 µm can be chosen.
Dual types of detectors for fluorescent X-rays and transmission X-rays
The XGT-9000 Series provides dual types of detectors. One is a fluorescent X-ray detector which tells the elemental distribution of a sample, and the other is a transmission X-ray detector which tells the internal structure of a sample. XGT-9000 can get the two types of images of the same area simultaneously. Especially it is helpful for a better understanding of electronics, gemstones including inclusions, and biological specimens.
High resolution and brilliant optical images
Capturing clear images is critical for micro-XRF analysis. The XGT-9000 series provides high resolution cameras to grasp the image of the whole sample and its details down to the microscopic level. Both images can be zoomed in and out digitally to find the best position to analyze on a sample surface flexibly. In addition, thanks to the multiple illumination systems, you can get brilliant optical images of your target sample.
Wide applications of the sample chamber
The XGT-9000 Series accommodates a wide variety of samples such as micro size fragments, printed circuit boards, coins, sheets, powder, liquid, and wafers. Various kinds of sample holders can be provided. In addition, up to 4 measurement environments can be selected to pull up sensitivity.
Flexible and user-friendly software
The XGT-9000 software has a highly flexible and user friendly interface. It displays data tree, optical images, spectrum results, the periodic table, and map imaging results at a glance. Thanks to the flexibility, users can customize the layout on the screen. Moreover, the results can be displayed on multiple monitors. It allows you to see the results more clearly and boost your data analysis.
Instrument |
X-ray analytical microscope |
||
Principle |
Energy dispersive X-ray fluorescence spectroscopy |
||
Detectable elements* |
F (9) - Am (95) |
C (6) - Am (95) |
B (5) - Am (95) |
Available chamber size |
450 mm (W) x 500 mm (D) x 80 mm (H) |
||
Maximum mass of sample |
1 kg |
||
Maximum mapping area |
100 mm x 100 mm on 300 mm (W) x 250 mm (D) |
||
Sample observation |
|||
Optical image observation |
Two high resolution cameras |
||
Whole image Detailed image |
5 million pixels, Field of view: 100 mm x 100 mm |
||
Optical design |
Vertical-coaxial X-ray and optical observation |
||
Sample illumination / Observation |
Top, bottom, side illuminations / Bright and dark fields |
||
|
|||
Power |
Up to 50 W |
||
Voltage |
Up to 50 kV |
||
Current |
Up to 1 mA |
||
Target material |
Rh |
||
|
|||
Probe spot size selection |
Various probe combination can be offered |
||
|
|||
X-ray fluorescence detector |
Liquid nitrogen-free Silicon Drift Detector (SDD) |
||
Transmission detector |
NaI (Tl) |
||
|
|||
Measurement environment |
Whole vacuum |
Whole vacuum |
Whole vacuum |
|
|||
Instrument size |
680 mm (W) x 860 mm (D) x 760 mm (H) |
||
Mass weight |
Approximately 200 kg |
