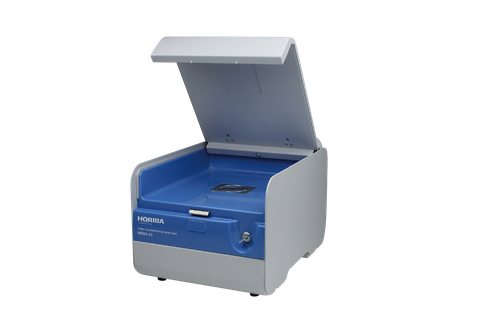

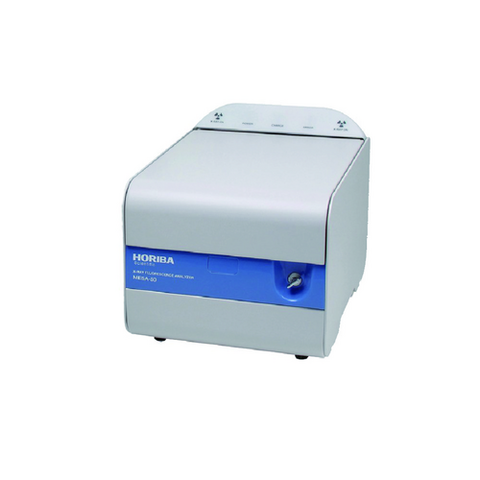

X-Ray Fluorescence Analyzer
MESA-50
HORIBA has now developed the new MESA-50 EDXRF analyzer, based on its long experience with customer requirements and knowledge. MESA-50 provides user friendly operation and good performance. MESA-50 includes three analysis diameters, suitable for every sample, from thin cables and electronic parts to bulk samples. The combination of SDD detector and Digital pulse processor (DPP) changes the image of EDXRF.
|
Basic Items |
Principle |
Energy dispersive X-ray fluorescence spectrometry |
|
Target application |
RoHS, ELV, Halogen Free |
|
|
Meas. Elements |
13Al - 92U |
|
|
Sample type |
Solid, Liquid, Powder |
|
|
X-ray generator |
X-ray tube |
Max 50kV, 0.2mA |
|
X-ray irradiation size |
1.2mm, 3mm, 7mm (Automatic switching) |
|
|
X-ray primary filter |
4 types (Automatic switching) |
|
|
Detector |
Type |
SDD (Silicon Drift Detector) |
|
Signal processor |
Digital pulse processor |
|
|
Sample chamber |
Atmosphere |
Air |
|
Sample observation |
CCD camera |
|
|
Utility |
Operation |
PC (Windows® 7) |
|
Power supply |
AC adapter (100-240V, 50/60Hz) |
|
|
Battery |
