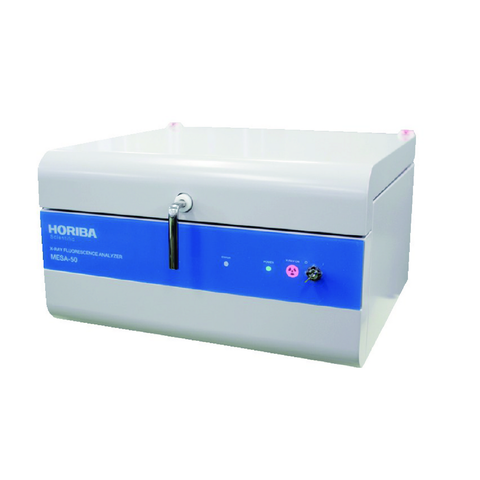

X-Ray Fluorescence Analyzer

MESA-50K

Contact

Quantity

Out of stock (Please contact us directly)

Features

Speedy

Silicon Drift Detector (SDD) drastically reduces measurement times, and provides increased sensitivity, for true high throughput analysis.

Small

The MESA-50K features a large sized chamber without compromising the minimum footprint. Can be simply connected to PC via USB.

Simple

Reduce routine maintenance work (LN2 free operation)
No need for vacuum pumps
Intuitive simple measurement process for all material types

Smart

English / Japanese / Chinese user interfaces
Excel® data management tool

Safe

No worry about X-ray leakage

Category Compare 0 Cart Call now

Call 0972000270 now for the best advice!

Status: Out of stock

Brand: HORIBA

Promo Code

Nhập mã NEOTECH SOLUTION để được giảm ngay 10$

Nhập mã TETGIAPTHIN để được giảm ngay 20$ tổng giá trị đơn hàng. Số lượng có hạn

See more promo codes Collapse

Overview
Specification
Catalog

HORIBA introduced the X-ray Fluorescence Analyzer XGT-1000WR series in 2002, with over 1000 units globally used for RoHS/ELV compliance and hazardous element analysis without sample cutting. In 2012, the MESA-50 X-ray Fluorescence Analyser was launched, gaining rapid popularity. In 2013, an extended MESA-50 variant with a larger sample chamber and LN2-free detector was added, offering As/Sb analysis and Multilayer Film FPM as optional features.

Basic Items	Principle	Energy dispersive X-ray fluorescence spectrometry
	Target application	RoHS, ELV, Halogen Free
	Meas. Elements	13Al - 92U
	Sample type	Solid, Liquid, Powder
X-ray generator	X-ray tube	Max 50kV, 0.2mA
	X-ray irradiation size	1.2mm, 3mm, 7mm (Automatic switching)
	X-ray primary filter	4 types (Automatic switching)
Detector	Type	SDD (Silicon Drift Detector)
Detector	Signal processor	Digital pulse processor
Sample chamber	Atmosphere	Air
	Sample observation	CCD camera
	Chamber size	460 x 360 x 150 mm [W x D x H]
Utility	Operation	PC (Windows^® 7)
Utility	Power supply	100-240V, 50/60Hz
Dimensions		590 x 590 x 400 mm [W x D x H]
Weight		60 kg
Software	Analysis Function	Multilayer Film FPM (Optional), Sb/As analysis (Optional)
