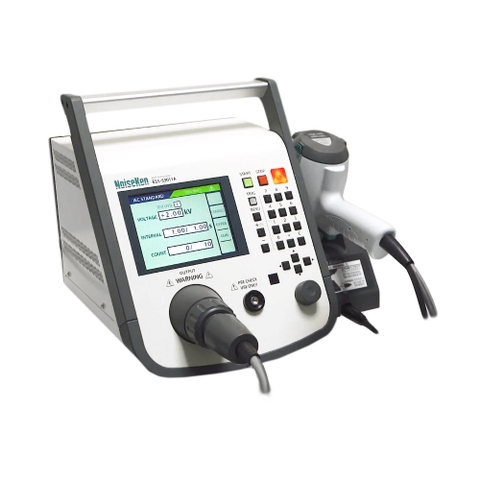

Electrostatic Discharge Simulator (ESD )

ESS-B3011A

Contact

Features

“Pre-checking function” tfor performing a more reliable testing
“CR constant checking function” (no indicator) to prevent incorrect unit attachment”
“Discharge Detecting Function” to realize the air-discharge confirmation.
“Lightest Discharge Gun in the market” to lighten the continuous operation.
“White LED Irradiator” to facilitate the visualization of the discharging area.
One-touch exchange of gun head and CR unit realized
Discharge output waveform (IEC Standard)

Call 0972000270 now for the best advice!

Status: Out of stock

Brand: NoiseKen

Promo Code

Nhập mã NEOTECH SOLUTION để được giảm ngay 10$

Nhập mã TETGIAPTHIN để được giảm ngay 20$ tổng giá trị đơn hàng. Số lượng có hạn

See more promo codes

Overview
Specification

ESD SimulatorESS-B3011A & GT-30RA

Cost-oriented Basic model

Cost-oriented basic model ESD Simulator equipped with the light weight discharge gun.
The output voltage can be selected up to max. 30 kV and compliant to both EN / IEC 61000-4-2 Standard and ISO 10605 Standard.

Parameter	Specification
Model	ESS-B3011A
Output voltage	0.20 kV ～ 30.0 kV ± 5% (30.5 kV max) *0.20kV ～ 1.99kV ±10%　2.00kV ～ 30.0kV ±5% ～ 10.0kV ： 0.01kV step 10.0 ～ 30.0kV ： 0.1kV step
Polarity	Positive / Negative
Repetition cycle	0.05s ～ 9.99s ± 10%, 0.01s step / Manual
Discharge No. of times	1 ～ 999 times, Preset 1 time step or continuous preset
Discharge mode	Contact discharge / Air discharge
Trigger mode	Gun trigger / Main trigger
Operation panel	Indicator : 5 x 7 Dot matrix LED / Operation : Push buttons (Partially lighting)
Radiation mode select switch	Extra / Normal switching function built-in
Discharge detection	Discharge detection function in air-discharge equipped.
Pre-checking function	High voltage output checking function (by user operation. Not the calibration but just checking)
CR & Gun head checking	CR constant and gun head recognizable (to prevent the wrong combination without indicator)
IEC LEVEL	Contact discharge mode : 2.0 kV, 4.0 kV, 6.0 kV and 8.0 kV step
Switching function	Air discharge mode : 2.0 kV, 4.0 kV, 8.0 kV and 15.0 kV step
Warning lamp	Lighting at voltage output from the generator. Blinking at electro-static discharging
Charge capacitor / resistor	150 pF ±10%, 330 Ω ± 10% (Built-in CR unit for discharge gun GT-30RA)
Charge resistor in generator	10 MΩ (Totally 53 Ω in combination with 43 MΩ in discharge gun)*
Power supply / consumption	AC 100 V ～ AC 240 V ± 10% 50 Hz / 60 Hz 62 VA
Dimensions	Generator : (W)270 mm x (H)263 mm x (D)200 mm Discharge gun : (W)83.3 mm x (H)217.2 mm x (D)229.3 mm
Weight	Generator : Approx. 4.6 kg Discharge gun : Approx. 800 g (excluding cable and connector)
