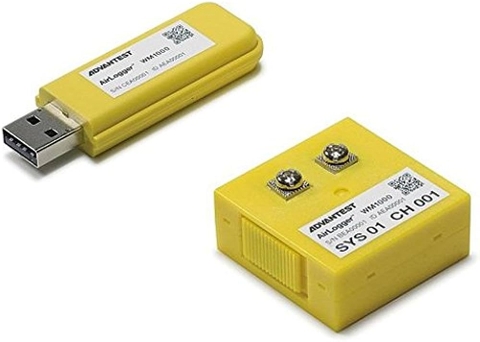

Wireless Temperature Logger

AirLogger™ Series (WM1000)

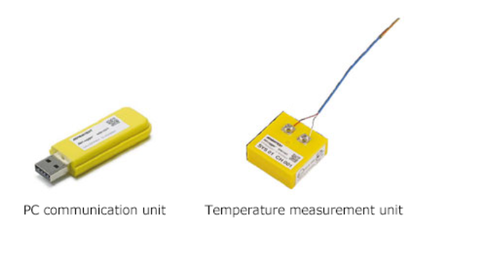

•  PC communication unit: WM1000-P000-001
• Sensor unit: WM1000-U000-001/WM1000-U100-001

Measures Temperatures of Rotating/Moving Objects with Ease

The wireless temperature measurement unit enables easy temperature measurement of rotating or moving objects and wide areas, which has been difficult with conventional products.

Light, Ultra-Compact Temperature Measurement Unit with Excellent Environmental Resistance

The temperature measurement unit is ultra-compact and light, with dimensions of 35 mm (W) x 35 mm (D) x 14.5 mm (H) and a weight of 20 g (including the battery). The operating environmental temperature range of the measurement unit is from -15 to +70°C, and the unit features excellent environmental resistance with IP54 waterproof/dust-proof capabilities and vibration resistance equivalent to JIS D1601 Type 1, Class C, which makes the WM1000 useful in many fields.

• Ultra-compact measurement unit
• Operating environmental temperature: -15 to +70°C (the measurement temperature range depends on the type of thermocouple.)
• Waterproof/dust-proof (IP54)
• Vibration resistance equivalent to JIS D1601 Type 1, Class C

Fully Wireless

The temperature measurement unit is powered by a general-purpose button battery, which eliminates the need for a power cable. The measurement unit is fully wireless.

Simultaneous Measurement up to 100 Channels

Up to 100 temperature measurement units can be connected to a PC, allowing temperature changes at 100 points to be monitored in real-time.

Simple Software Specially Designed for Temperature Measurement

The software specially designed for temperature measurement is intuitive and extremely easy to use. Even first-time users and those who have not used the system in a while will be able to start performing measurements immediately.

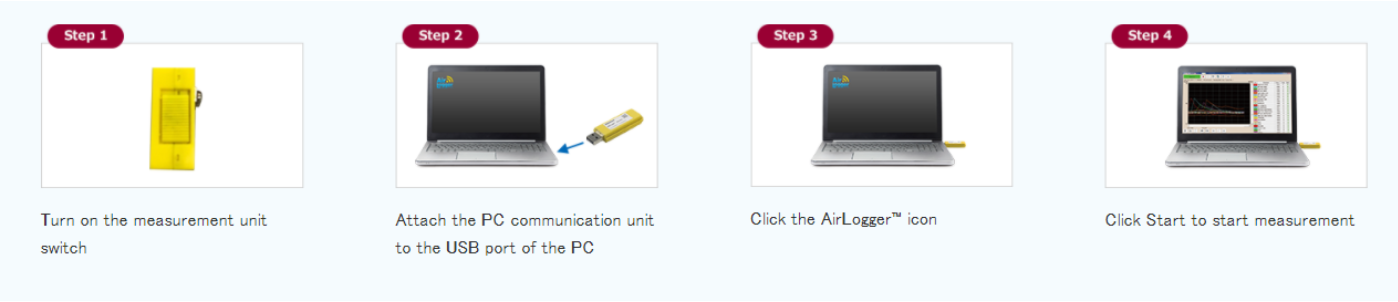

Starts Measuring in Just 30 Seconds

The WM1000 temperature logger has an extremely simple configuration. Users only need to start the software in their PC and put batteries in the temperature measurement child units (temperature sensor) to begin measuring. It takes as little as 30 seconds from launching the software to starting measurement, making the system convenient for even small measurement jobs.

Runs on Inexpensive General-Purpose Batteries

The temperature measurement unit is powered by a commercially available button lithium metal battery (CR2032), which helps reduce the running cost.

Can be Used in Japan, the United States, China, and Vietnam

The WM1000 data logger complies with the wireless standards of Japan and the United States (Japan: Technical Regulations Conformity Certification, US: FCC compliance). The product has been approved for use in China and Vietnam. For the details of compliance, refer to "Regulations of Radio Laws."

Extensibility

By creating a program using the optional WM1000 Series API software, data of pressure, strain, humidity, etc., measured by other measuring instruments can be synchronously measured in one program.

AirLogger™ Series (WM2000)

• PC Communication unit: WM2000ZA
• 2 ch Temperature/Voltage Measurement Unit: WM2000TA
• 7 ch Temperature/Voltage Measurement Unit: WM2000TB
• Strain Measurement Unit: WM2000SA

Small and Excellent Environmental Resistance

The measurement units have been made small with high density mounting technology. They can perform measurement in operating environmental temperatures from -40°C to less than +100°C (depends on the model).

Simultaneous Measurement of Temperature, Strain, and Voltage in flexible combinations

Up to 100 temperature/voltage measurement units, strain measurement units, and dynamic strain measurement units can be arbitrarily combined and their data can be received with one PC communication unit.
The sampling time can be set for each unit, as well as the physical quantity for each channel, enabling real-time monitoring of various types of measurement.

Real-Time Simultaneous Measurement of up to 700 Points

One PC communication unit can be connected to as many as 100 measurement units.
While measuring wirelessly, temperature/voltage can be measured at a maximum of 700 points simultaneously. Measurement points can be dispersed across a broad area.

*Can measure up to 700 points of temperature/voltage (When 100 units of 7 ch Temperature/Voltage Measurement Unit are used)
Can measure up to 300 points of strain (When 100 units of 3 ch Dynamic Strain Measurement Unit are used)

Software Switch Function

The power switch has been removed from the measurement unit. Units can now be turned on and off from your PC.

Internal Memory Protects Measurement Data

When the radio environment is poor and data transfer is unstable, the internal memory temporarily stores the measurement data and interpolates the data after measurement. Measurement data can be displayed and stored without any missing portions after being interpolated.

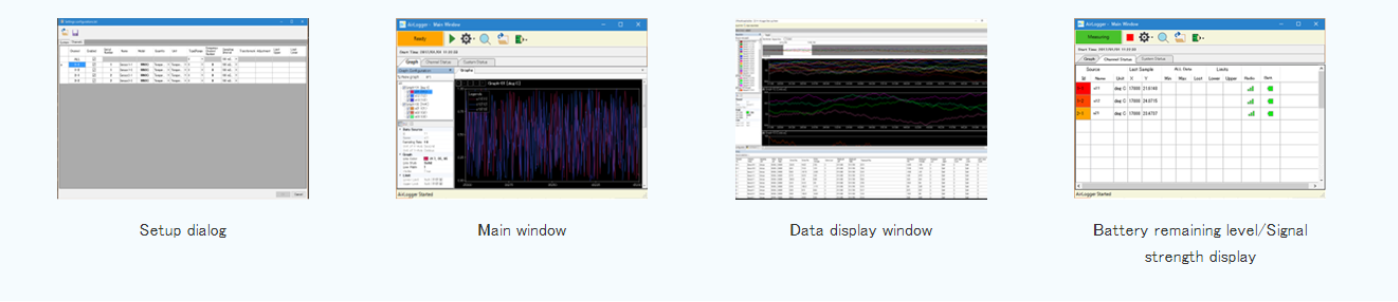

Simple, User-Friendly Software

The main window shows the simple software that has been specialized for measurement functions. The window displays different kinds of measurement data in real-time, and is equipped with different kinds of cursors and analysis tools such as search functions.
Multiple graphs can be displayed in one window, and measurement data can be assigned to arbitrary graphs.
The window can also display remaining battery levels and signal strength for each measurement unit.
