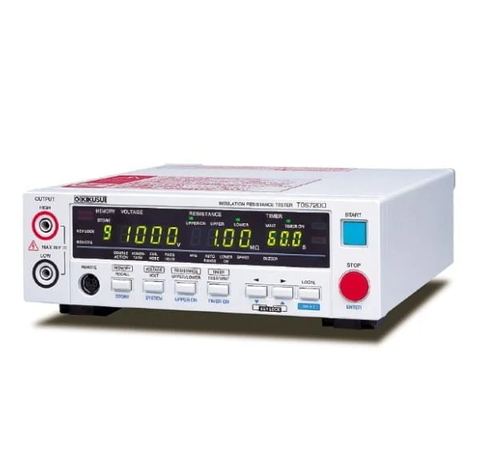

Insulation Resistance Tester
TOS7200

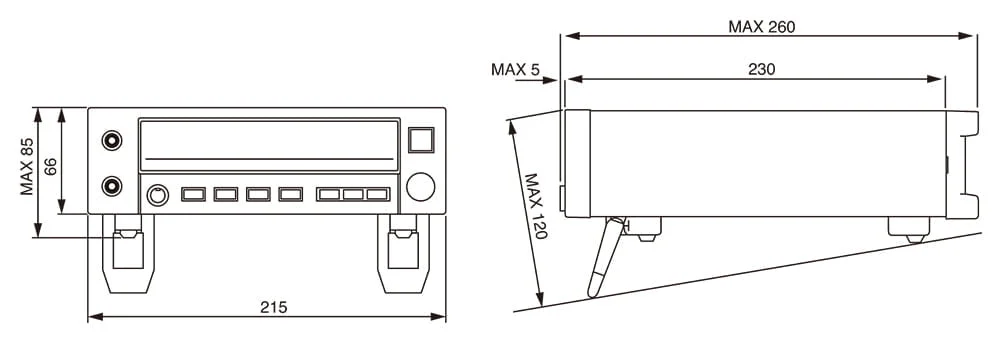

Dimensions(mm)
Accessory
AC power cable: 1 pc.
High voltage measuring lead TL08-TOS (1.5 m): 1 set
Instructions for use: 1 copy
Output voltage range: -25 V ~ -1000 V; 1 V; ±(1.5 % setting + 2 V)
Maximum rated load: 1 W (1 000 V/1 mA)
Maximum rated current: 1 mA
Measure: V, R
Interface: REMOTE, SIGNAL I/O, RS232C, ANALOG OUT
Nominal voltage range (Allowable voltage range): 100 V ~ 240 V AC (85 V ~ 250 V AC)
Voltage consumption at rated load: 30 VA maximum
Frequency: 47 Hz ~ 63 Hz
Weight: Approx. 2 kg (Approx. 4.41 lbs)
heading 6
Specifications
Output voltage range: -25 V ~ -1000 V; 1 V; ±(1.5 % setting + 2 V)
Maximum rated load: 1 W (1 000 V/1 mA)
Maximum rated current: 1 mA
Measure: V, R
Interface: REMOTE, SIGNAL I/O, RS232C, ANALOG OUT
Nominal voltage range (Allowable voltage range): 100 V ~ 240 V AC (85 V ~ 250 V AC)
Voltage consumption at rated load: 30 VA maximum
Frequency: 47 Hz ~ 63 Hz
Weight: Approx. 2 kg (Approx. 4.41 lbs)
