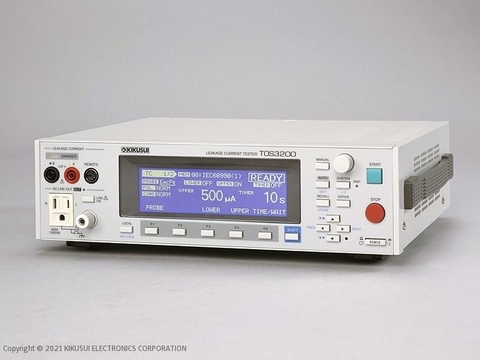

Leakage Current Tester
TOS3200
Up to 30 mA for RMS measurement
Capable of measuring 30 μA to 30 mA for DC/RMS measurement and 50 μA to 90 mA for PEAK measurement, both in three ranges. Two range switching functions are provided, namely, a fixed range function (FIX) and auto range function (AUTO), which conform to the current to be measured.For RMS measurement, the “true root-mean-square value” is achieved
Enables the continuous execution of tests
Allows you to automatically conduct TC and PCC tests as a single sequence program by setting their test conditions as up to 100 indep endent test s (steps). You can set up to 100 se quence programs, with up to 500 steps in total. To support automation test, measurement point (probe setting) can be switched over without turning off EUT power line.
Lets you manage the calibration time limit
For independent tests, enables you to save not only test results but also the test date and time and the test conditions for up to 50 tests; for auto tests, you can save this data for up to 50 programs. You can also save the test results as external records using the USB and other interfaces.
USB interface provided as standard
In addition to the SIGNAL I/O, GPIB, and RS232C interfaces, a USB interface is also provided as standard.
Range of other functions
- “MAX function” which retains the largest current measured.
- “CONV function” which converts the measured current value into the corresponding value for the preset power voltage.
- “SELV function” which causes the DANGER lamp to turn ON if a preset safety extra low voltage (SELV) is exceeded in meter measurement mode.
- “CHECK function” which performs self-analysis of the measurement circuit networks.
51 types of standard test conditions are preset
The memory in the main unit is pre-written with 51 types of test conditions for general electrical equipment, which conform to IEC 60990 and the standards listed below. You can set the standard test conditions merely by calling them.
Standards covered by the memory
|
Standard No. |
Applicable electrical equipment |
|
IEC60950 |
Information technology equipment |
|
IEC60335 |
Household and similar electrical appliances |
|
IEC60065 |
Audio, video and similar electronic apparatus |
|
IEC60745 |
Hand-held motor-operated electric tools |
|
IEC60598 |
Luminaires |
|
IEC61010 |
Electrical equipment for measurement, control, and laboratory use |
|
Electrical Appliance and Material Safety Law |
Electrical appliances |
|
IEC61029 |
Transportable motor-operated electric tools |

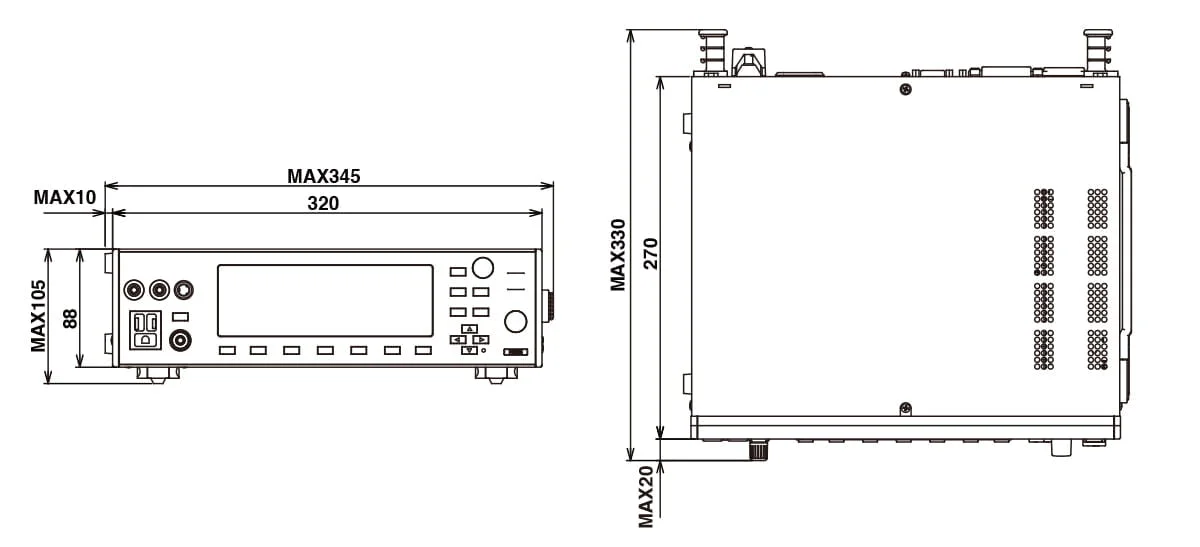

Dimensions(mm)
