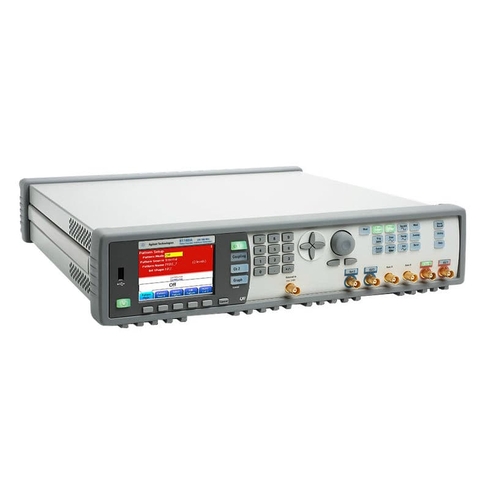

Pulse Function Arbitrary Noise Generator

Key specifications

Description

Frequency range

1 µHz to 120 MHz (pulse)

1 µHz to 240 MHz (sine)

Waveforms

Noise, adjustable crest factor, sine, pulse, square, ramp, arbitrary waveform

Channels

1 or 2, differential outputs Output

Output amplitude
       –High voltage
       –High bandwidth

50 Ω into 50 Ω

–100 mVpp to 10 Vpp

–50 mVpp to 5 Vpp

Modulation types

AM, FM, PM, FSK, PWM external and internal, double pulse

Transition times

2.5 ns to 1000 s (10% to 90%)

Output impedance

50 Ω/5 Ω selectable

Memory

Arbitrary: 512 k samples per channel
Pattern: 16 Mbit per channel

Noise repetition rate

26 days

Display

Color, bright

Supported drivers

Keysight VEE, IVI-COM, NI Labview, Matlab
