Spectrophotometer
Exact 2
The Exact 2 color spectrophotometer is an improved generation of the Exact Standard series. With its modern design and a 30% larger display, it provides larger and more user-friendly results. Additionally, it features a non-contact sample measurement innovation called the Video Mantis (targeting system) in combination with a high-quality display, allowing for quick and highly accurate sample measurements.
Furthermore, the new design incorporates a sliding wheel, which prevents direct contact between the sensor and printing ink or the sample being measured. This design enhancement makes the device more durable and less prone to damage.
The target users of the Xrite color spectrophotometer include:
1. Laboratories, Quality Control (QA-QC), and Research and Development (R&D) Departments: They use it to compare colors and measure color differences in various industries, including packaging manufacturing companies, offset printing, copper cylinder printing, flexo printing, and color-printed carton boxes, as well as colored paper. It helps evaluate color discrepancies between customer-requested samples and the actual printed results.
2. Commercial Ink Manufacturers: They use it to assess the color of their inks.
3. Customers Placing Orders with Printing Companies: Customers use it to ensure that the printing companies meet their color requirements and expectations.
In summary, the Exact 2 color spectrophotometer serves as a valuable tool for quality control, color matching, and ensuring that printed materials meet desired color specifications across a range of industries and applications.
|
Aperture |
1.5 mm, 2 mm, 4 mm or 6 mm |
|
Battery |
Lithium Ion, 3.63VDC, 4750mAh |
|
BestMatch Feature |
Yes |
|
Calibration |
Automatic on white reference |
|
Color Differences |
CIE ∆E* (1976), ∆ECMC, CIE ∆E* (2000), and CIE ∆E* (1994) |
|
Color Spaces |
CIE L*a*b*, CIE L*C*h° |
|
Communication Interface |
USB-C; Wi-Fi |
|
Connectivity |
USB-C; Wi-Fi |
|
Density Range |
0.0 D – 3.0 D |
|
Density Standards |
Status A, E, I, T and G |
|

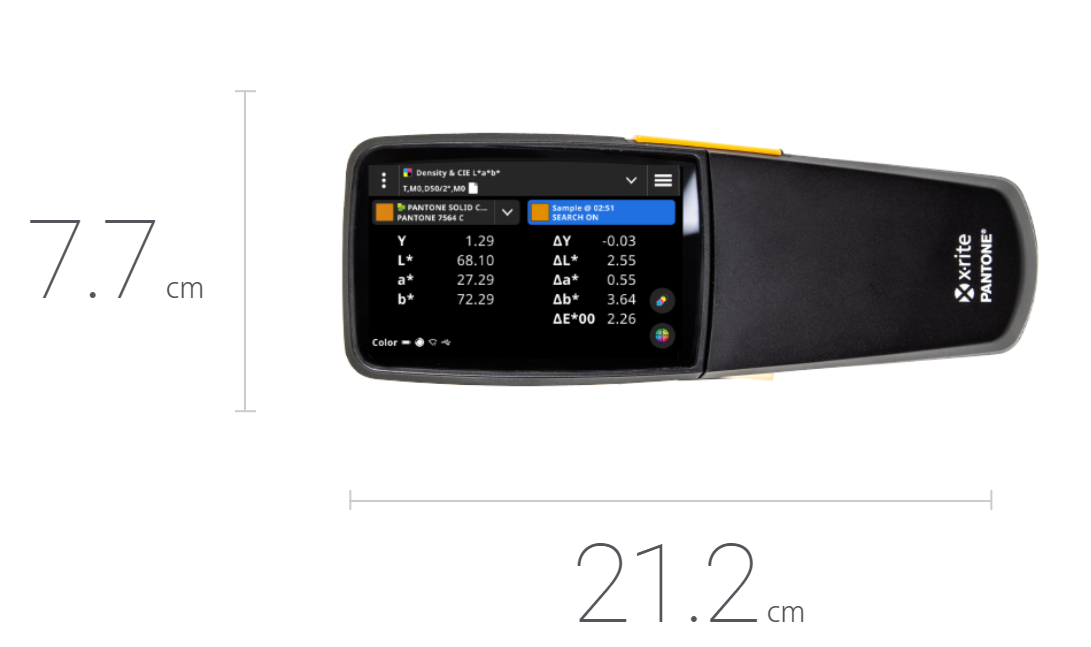

Dimensions (length, width, height) |
21.2 cm x 7.7 cm x 7.7 cm (LxWxH) |
|
G7 Certification |
Yes with embedded G7, PSO, Japan Color job templates |
|
Humidity |
30 to 85% RH (non-condensing) |
|
Illuminants |
A, C, D50, D55, D65, D75, F2, F7, F11, F12 |
|
Import/Export Format |
CxF3 |
|
Industry Standards |
ISO 5-4:2009(E), ISO 13655:2017 |
|
Instrument Display |
Color touch-screen, 800 x 480 pixels |
|
Inter-Instrument Agreement |
Average: 0.25 ΔEab, |
|
Languages Supported |
Bulgarian Chinese Simplified, Chinese Traditional, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Romanian, Russian, Serbian, Slovenian, Spanish, Swedish, Thai, Turkish, Vietnamese |
|
Light Source |
LED |
|
Macintosh |
macOS 10.15, macOS 11, macOS 12 |
|
Measurement Conditions |
2: M0, M1 (method 2), M2, M3 |
|
Measurement Geometry |
45°:0° ring illumination optics, ISO 13655:2017 |
|
Measurement Time |
< 1 sec |
|
NetProfiler Support |
Yes |
|
Observers |
2° and 10° |
|
Operating Temperature Range |
10°C to 35°C |
|
PantoneLIVE Support |
Yes; Embedded Pantone Libraries |
|
Pass / Fail |
Yes |
|
Scan Length |
Max: 1,120mm (44”) |
|
Scanning Capability |
Yes, Embedded Scanning |
|
Service Indicator |
Certification Reminder |
|
Short Term Repeatability - Density |
+/- 0.01 D for CMYK (Status E or Status T measurements, maximum error compared to mean value of 10 measurements every 5 seconds at 2.0 D except for M3 Yellow at 1.7 D) |
|
Short Term Repeatability - White |
0.02 ΔEab (standard deviation) White BCRA (Error compared to mean value of 20 measurements every 5 seconds) |
|
Single Pass Scan |
M0, M1, M2, M3 |
|
Software Development Kit |
Yes |
|
Spectral Analyzer |
DRS spectral engine |
|
Spectral Interval |
10 nm |
|
Spectral Range |
400 nm to 700 nm |
|
Standards |
Memory capacity for more than 50,000 standards |
|
Storage Temperature Range |
-20° to 50°C |
|
Supported Substrates |
Paper, corrugated, carton board |
|
User Experience |
Start-up wizard, configurable, customize toolset, upgradable |
|
Voltage |
12 VDC @ 2.5 A (Docking Station Power Supply) |
|
Warranty |
1 year |
|
Weight |
620g, |
|
What's Included? |
USB-C cable with Adapter for USB-A, Power Supply, Software and documentation, Docking/Charging Station, Quick Start Guide, Carrying case, ISO 9000 certificate. |
|
Windows |
Windows 10 (32 and 64 bit), Windows 11 |
