Vibration Meter

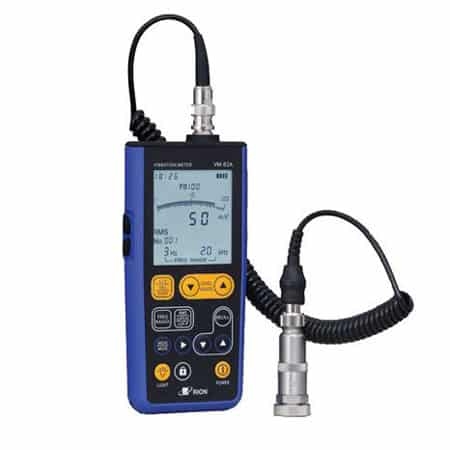

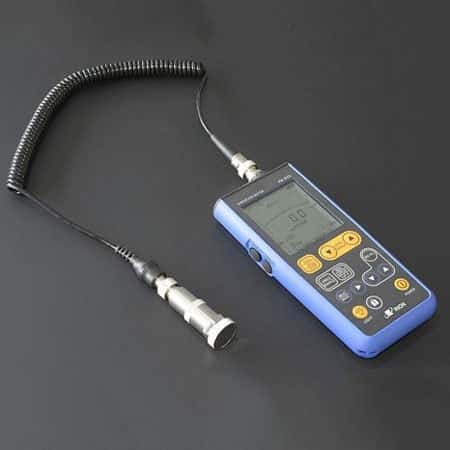

The VM-82A multifunctional vibration meter is primarily designed for the maintenance and testing of industrial machinery, with a particular focus on rotating machinery. Acceleration, velocity, and displacement can be easily measured using the appropriate frequency range, allowing for comprehensive and accurate assessment of the machine's vibrations.

Specification

- Frequency Range of Rion VM-82A

• Acceleration: 3 Hz to 1 kHz, 3 Hz to 5 kHz, 1 Hz to 100 Hz, 3 Hz to 20 kHz
• Velocity: 10 Hz to 1 kHz, 3 Hz to 1 kHz
• Displacement: 10 Hz to 500 Hz, 3 Hz to 500 Hz

The values representing the measurement range are subject to approximately 10% attenuation due to high-pass or low-pass filter action. Electrical characteristics for velocity from 10 Hz to 1 kHz comply with the frequency range requirements of JIS B 0907 "Mechanical Vibration of Rotating and Reciprocating Machinery – Requirements for Instruments for Measuring Vibration Severity."

- Designated Characteristics of Rion VM-82A

• Acceleration: RMS, EQ PEAK
• Velocity: RMS, EQ PEAK
• Displacement: RMS, EQ PEAK, EQ p-p

- LCD Display Panel (Monochrome Segment LCD)

• Measurement Value Display: Display range from 001 to 128. The average of 20 sampled values for every 100 ms is displayed, updated every 2 seconds.
• Bar Graph Display: Logarithmic scale, 1 to 100% full-scale ratio.
• Designated Characteristics: RMS, EQ PEAK, EQ p-p
• Overload Indicator: "OVER" displayed on the screen, and the screen color changes to red.
• Measurement Mode Indicator: Acceleration, Velocity, Displacement. Memory Address Indicator: 000 to 999 (1,000 data points).
• Battery Status Indicator: 4-segment display.
• Time Indicator: Year, month, day, hour, minute.
• Accelerometer Sensitivity: 0.10 to 0.99, 1.0 to 9.9, 10 to 99 mV/(m/s²)

- Data Memory: Can store up to 1,000 data points (000 to 999)
- Gain Adjustment: Select accelerometer sensitivity to set appropriate gain levels.
- Setting Range: 0.10 to 0.99, 1.0 to 9.9, 10 to 99 mV/(m/s²) (pC/(m/s²) when using VP-40/42)
- Outputs of Rion VM-82A

• AC Output
• Full-scale measurement range: 1 V
• Output impedance: Approx. 600 Ω
•  DC Output
• Full-scale measurement range: 1 V
• Output impedance: Approx. 600 Ω

- Output Voltage and Display Accuracy (Electrical Characteristics)

• Acceleration: Full-scale measurement range ±2% (80 Hz)
• Velocity: Full-scale measurement range ±3% (80 Hz)
• Displacement: Full-scale measurement range ±5% (80 Hz)

- Rion VM-82A Interface

• USB: For data export and remote control of the device, data import to a computer requires specialized software.

- Operating Environmental Conditions

• Accelerometer: -20°C to +70°C, max. 90% RH
• Main unit: 10°C to +50°C, max. 90% RH

- Power Requirements

• 4 IEC R6 (AA-size) batteries, AC power adapter (NC-98E, optional)

- Current Consumption: 65 mA
- Battery Life (Continuous Use)
Alkaline batteries: Approx. 24 hours (room temperature, backlight OFF, output and communication functions OFF)
Nickel-metal hydride (en XX ®): Approx. 32 hours (room temperature, backlight OFF, output and communication functions OFF)
- Dimensions/Weight
Approx. 171.5 (H) x 74 (W) x 25.5 (D) mm / Approx. 270 g (including batteries)
- Rion VM-82A Complete Set Includes
Main unit VM-82A, Accelerometer PV-57I, Accelerometer sensor cable VP-51KI, Magnet mounting base VP-53S, IEC R6P batteries, Carrying case, Certificate of Origin - CO (copy of the original), Certificate of Quality - CQ (copy of the original).
