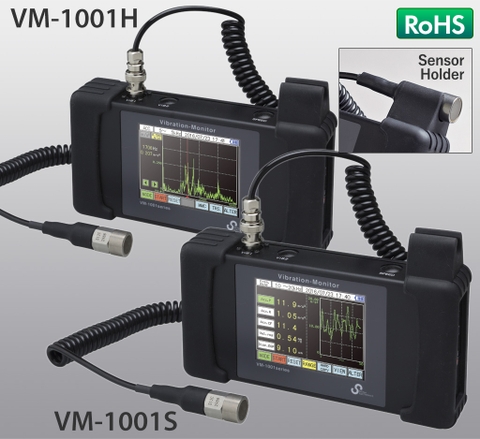

VM series
Battery powered portable monitor suit for Simplified diagnosis
VM-1001H: High grade model with built-in Frequency analyzer
VM-1001S: Simplified economy model
Easy operation, Low price
•Battery and AC power operation
•Vibration severity measurement (based on JIS B 0907)
•Measurement and Recording Acceleration, Velocity and Displacement
•Screen image can be strored
Model |
High-grade type: VM-1001H |
Standard type: VM-1001S |
|
Vibration input channel |
1ch |
||

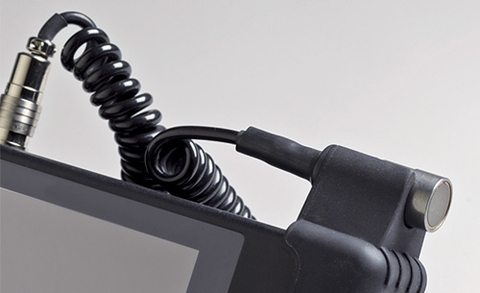

Vibration sensor |
Piezoelectric Accelerometer: Model P10T, Sensitivity: 10pC/ (m/s²) |
||
Measuring range |
Acceleration |
0.1 to 40 m/s² |
|
Velocity |
0.1 to 200 mm/s |
||
Displacement |
1.0 to 5000 μm |
||
Frequency range |
Acceleration |
10Hz to 20kHz |
|
Velocity |
10Hz to 1kHz (based on JIS B 0907-1989) |
||
Displacement |
10Hz to 1kHz |
||
Envelope |
1kHz to 20kHz |
N/A |
|
USB port |
USB mini-B type (for measured and screen capture data transfer to PC) |
||
Micro SD card slot |
Equipped as standard |
||
Display |
3.5” color LCD with touch screen |
||
Electric power |
Li-Ion battery and/or AC adapter |
||
Dimension and Mass |
180(W)×45(L)×100(H)mm / 350g |
||
Vibrometer mode |
Acceleration |
Peak value. True RMS, Crest factor |
|
Velocity |
True RMS |
||
Displacement |
Derived P-P or True RMS selectable |
||
Frequency analysis mode |
Function |
Spectrum, Accel Envelope, Bearing diagnosis |
N/A |
Parameter |
Acceleration, Velocity, Displacement,Envelope |
||
No. of sampling |
64, 128, 256, 512, 1024, 2048 |
||
Frequency range |
200Hz,500Hz,1kHz,2kHz,5kHz,10kHz,20kHz |
||
Window function |
Hanning, Rectangular, Flat top |
||
Time domain waveform mode |
Frequency range |
200Hz,500Hz,1kHz,2kHz,5kHz,10kHz,20kHz |
N/A |
No. of line |
25,50,100,200,400,800 |
