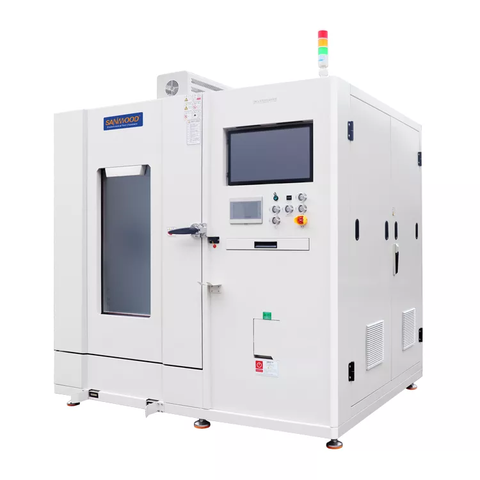

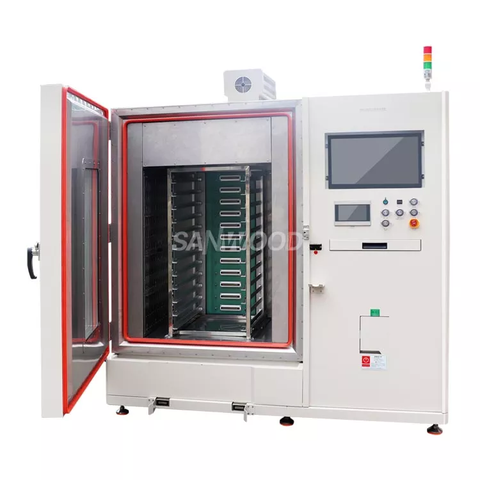

eMMC High And Low Temperature Test Chamber

Product Description

eMMC High And Low Temperature Test Chamber widely used in aerospace, aviation, electronics, 5G communications, automobiles, SSDs and other industries for accelerated damp heat test, alternating temperature test and constant temperature test of electronic and electrical products, materials, parts, equipment, etc., High and low temperature routine tests and low temperature storage can also be used to evaluate the behavior and performance of the sample under given environmental conditions.

This new product is tailored specifically for a certain brand of EMMC (Embedded MultiMediaCard).

Test standard：
IEC68-2-1(GB/T2423.1-2001
GB10589
GB11158
GJB150.3-1986
GJB150.4-1986
GB12348-2008

Product features:

• Inner size :W800×D700×H1050mm

• Inner box volume :588L

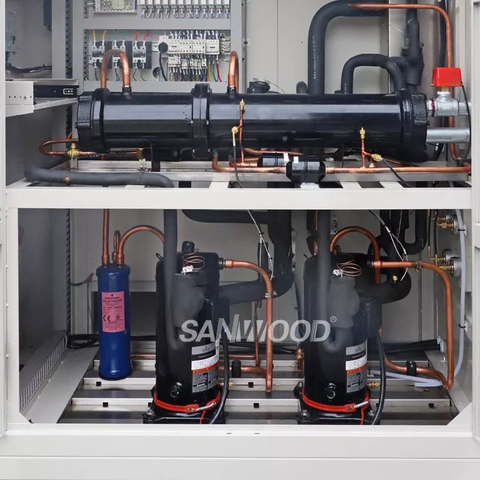

• Cooling method: water-cooled

• Machine weight about: 750KG

• Power supply :AC 380V about 21KW

• Working noise A sound level: ≤75dB(A)

• Temperature range :-70℃～+150℃

• Temperature fluctuation :≤±0.5℃

• Temperature deviation :≤±2℃

• Temperature uniformity :≤±2.0℃

• Heating rate. Time: -50℃～+85℃ 5℃/min full non-linear

• Cooling rate. Time :85℃～-50℃ 5℃/min full-time nonlinear

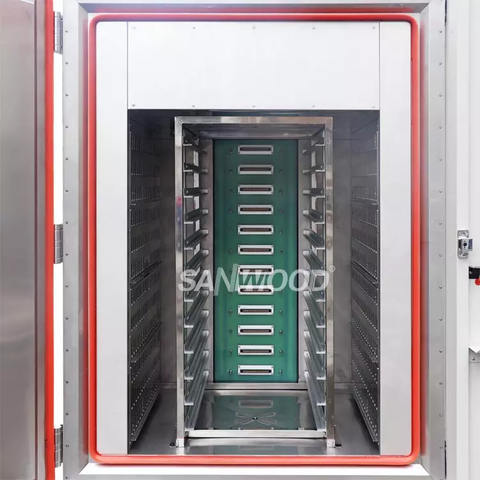

• Load 12 layers of BIB board/each layer 5V/60A 3000W heat

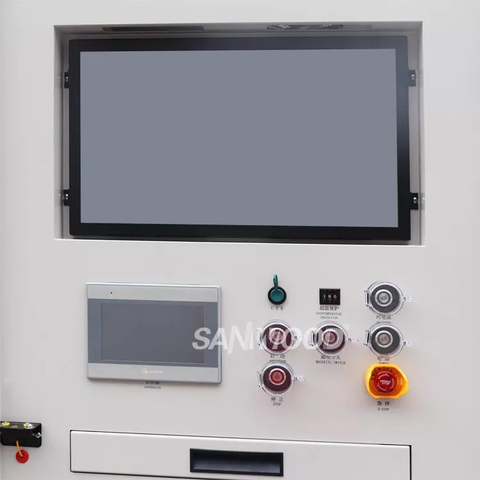

BIB board maintenance function:  Design an independent power switch on each floor of the rear warehouse shelf, which is convenient for power-off operation when the BIB board needs maintenance Anti-static function :Add an electrostatic hand strap interface next to the control panel Communication function :This machine is equipped with RS485 and Ethernet interface, with PC connection communication function, and can be imported into MES system for joint control.
