DC power Supplies

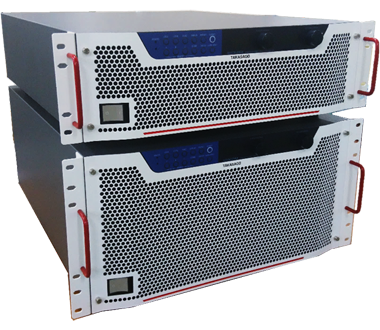

HX-S-G
Contact
Call 0972000270 now for the best advice!
Status:
Out of stock
Brand: TAKASAGO
Type: Power Electronics Equipments
- Equipped with intelligent parallel operation capability.
- A total of 10 devices can operate in parallel by mixing models with different power capacities and the same voltage.
- Automatically detects the number of devices and total power using a dedicated cable.
- Further convenience with complete digital control.
- High-speed response time of 1 ms and high stability even for high-power types.
- Advanced switching technology achieves efficiency over 90%.
- Equipped with a standard serial communication port.
- Full range of optional functions (variable internal resistance, sequential ON/OFF, mode selection function, etc.).
- Input (operating power) compatible with both 200V three-phase voltage for home use and 400V three-phase voltage (342V to 440V), which is common overseas.
- Dust filter compatible with particles larger than 9.50μm is a standard feature.
- Continuous power can be achieved at 10,100% even at an ambient temperature of 50°C when the dust filter is installed.
- Achieves a 3-year warranty thanks to improved reliability.
- Supports a 10-step sequence function.
|

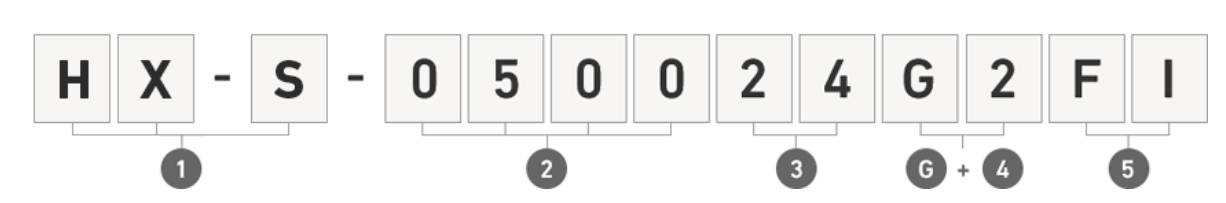

Product Line Name |
HX-SG series |
|
Rated Output Voltage |
030:0～30V / 060:0～60V / 0120:0～120V / 0400:0～400V / 0500:0～500V / 01000:0～1000V |
|
Rated Output Current |
24:0～24A |
|
Operating Voltage Data |
G2: AC180~242V three-phase 45Hz~65Hz |
|
Device Function |
F (Function): Model with variable internal resistance, surge current elimination function, variable speed, and sequential ON/OFF capability. I (Isolation): Model with external insulation control. |
