Multifunctional Electronic Load

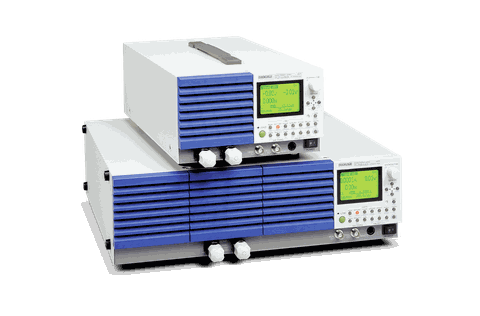

The PLZ-4W Series Electronic Load unit is a reliable and safe multifunctional system, offering constant voltage, constant current, constant power, and constant resistance modes. Equipped with GPIB, RS232C, and USB interfaces, the control unit ensures versatile connectivity. With 5 models available, including 0V input options (PLZ164WA, PLZ664WA), it caters to testing needs for Fuel Cells, DC/DC converters, SW Power Supplies, and devices with lower operating voltages. The PLZ664WA boasts the largest current rating in its class at 132A (33A for PLZ164WA). Its high-speed slew rate makes it suitable for simulating loads in applications like Automobile electronics, SW Power Supply manufacturing, and Secondary Battery testing. For cost-effective large-capacity testing, the PLZ1004W can be expanded up to 9kW using the 2kW booster unit (PLZ2004WB).
