Stereo Microscopes

SZ61

Contact

Features

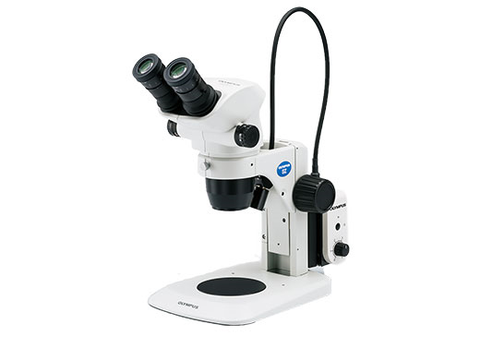

The SZ51 and SZ61 microscopes, deliver images with superb depth of field as well as clarity, detail and true-to-life color and built in ESD protection. Their dependable, high-performance optics are central to producing consistent accurate results.

Call 0972000270 now for the best advice!

Status: Out of stock

Brand: olympus

Type: Measurement systems

Promo Code

Nhập mã NEOTECH SOLUTION để được giảm ngay 10$

Nhập mã TETGIAPTHIN để được giảm ngay 20$ tổng giá trị đơn hàng. Số lượng có hạn

See more promo codes

Overview
Specification

SZ51/61 have zoom ratios of 5:1 and 6.7:1 (zoom range 0.8x-4x and 0.67x-4.5x) respectively and are affordably priced yet off the highest resolving power in their price range and are available with either 45 or 60 degree inclination angles for observation.

Utilizing the Greenough optical design, all zoom bodies incorporate the latest aberration and distortion-free optics that set a new standard in optical quality while maintaining superior operability.

The V-shape optical path ensures a slim zoom body - ideal for integration into other equipment or stand alone us

3 Dimensional Viewing
- The optimum inward angle allows just the right combination of high level flatness and depth of focus for 3D viewing. Even a specimen with significant depth can be brought into focus from top to bottom for faster inspection
Observation Images with High Color Fidelity
- Superior optical coatings render true color images with fine detail.
ESD Measures for Protecting Devices from Static Electricity
- The main unit and major accessories can quickly eliminate static electricity with the use of antistatic materials and coatings. This prevents a specimen under observation from electrostatic damage.

| Microscope Bodies According to Your Application

The SZ51/61 are available as 45-degree or 60-degree oriented models suitable for use with bench stands or OEM integration. The SZ61TR is video/digital camera ready with a built in c-mount optically matched to the zoom body, that guarantees parfocal, sharp images when a camera is attached.

Standard Type(SZ61/SZ51)

Trinocular Tube Type(SZ61TR)

Built-in Type(SZ61/SZ51-60)

Variety of Illumination Units

LED Illumination - Combination Reflected and Transmitted Light Stand

LED Illumination Stand

LED Illumination Stand

Ultra thin and eco-friendly LED stands provide energy efficient trouble free usage.

| "Off the Bench" Illuminator

Dual Interlock Light Guide Illuminator

This specially designed fiber optic light source can mount directly onto the stand for a clutter free workspace. Available with single, double interlock or ring light guides, this system will provide bright long life illumination.

| Coaxial Reflected Light Illumination System

Near Vertical Illuminator System
Coaxial Reflected Light Illumination System

The SZ61 combines a polarizer and a 1/4λ plate for easier viewing of specimens, which are difficult to examine under oblique reflected light illumination.

| White LED Illuminator System

White LED Illuminator
*The model of the LED illuminator may vary with area.

A long-lasting ringlight illuminator with minimal thermal effect and superior brightness is ideal for homogeneous lighting.

Observation Method	Simple Polarized Light		✓
	Brightfield		✓
	Darkfield		✓
	Oblique		✓
Zoom	Zoom Ratio		SZ61: 6.7, SZ51: 5
	Magnification Indication		SZ61: 0.67, 1, 2, 3, 4.5 SZ51: 0.8, 1, 2, 3, 4
	Features		Left/right single-shaft horizontal knob Interpupillary distance high/low magnification stopper incorporated. Lead-free
Optics	Greenough Optical System		✓
Focus	Focusing Mechanism	Coarse Focus	✓
	Coarse Handle Stroke		120 mm
Observation Tubes	Widefield (FN 22)	Binocular	✓
		Trinocular	✓
	Tube Inclination Angle		45° 60°
	Trinocular Tube Light Path Selection (Camera : Observation)		0%:100%, 100%:0%
	Interpupillary Distance Adjustment		52–76 mm
Stands	Standard Stand		✓
	Optional Bases and Stands	Quad Position LED Transmitted Light Illumination Base	✓
		Single Position LED Transmitted Light Illumination Base	✓
		Transmitted/Reflected LED Illumination Base	✓
		Large Stand	✓
		Universal Stand	✓
Dimensions			194 (W) × 253 (D) × 368 (H) mm (Standard Set Configuration)
Operating Environment	Indoor Use	Ambient Temperature	0–40 ºC (32–104 ºF)
		Maximum Relative Humidity	30–90 %
Eyepiece			WHSZ10X FN 22 WHSZ20X FN 12.5 WHSZ10X-H FN 22* WHSZ15X-H FN 16* WHSZ20X-H FN 12.5* WHSZ30X-H FN 7* *with diopter adjustment and reticle
Objectives			(Option) 110ALK0.3X 250–350 110ALK0.4X 180–250 110AL0.5X 200 110AL0.62X* 160 110AL0.75X 130 110AL1.5X 61 110AL2X 38
