X-ray Inspection for electronics assembly

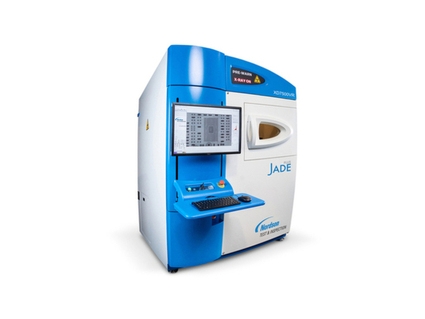

MXI Jade Plus
Contact
Call 0972000270 now for the best advice!
Status:
Out of stock
Brand: NORDSON
Type: Measurement systems
Prove Your Quality
Jade Plus inspects the hidden regions of your products which are inaccessible to optical tools.
- Spot quality process trends early using advanced measurement tools for distance measurement and voiding.
- Ensure IPC-A-610 and IPC-7095 compliance with built in checking for BGA and QFN voiding, solder ball diameter, roundness, bridge and missing.
- See assembly defects clearly with 0.95 µm image resolution.
Screen for solder pad defects quickly with automated voiding measurement.
See what you are inspecting and move to parts quickly with the Component Location feature.
|
Xray Tube |
Open Transmissive |
|
|
3W |
|
Voltage |
30-160KV |
|
Frame Rate |
1.33 MP |
|
InSpection |
Gensys® X-ray Inspection Software for windows 10 |
|
Operation |
|
|
Magnification |
Up to x 7,500 |
|
Instalation |
|
|
Footprint (W x D x H) |
Not required |
|
X-ray safety |
< 1 µSv / hour, Meets all international standards |
