High Accuracy Image Dimension Measurement System

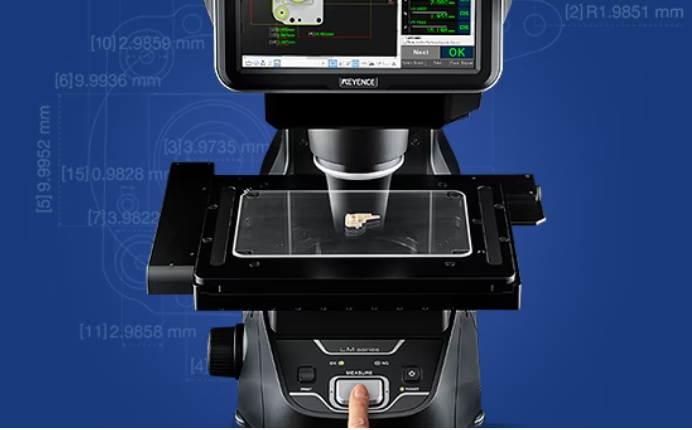

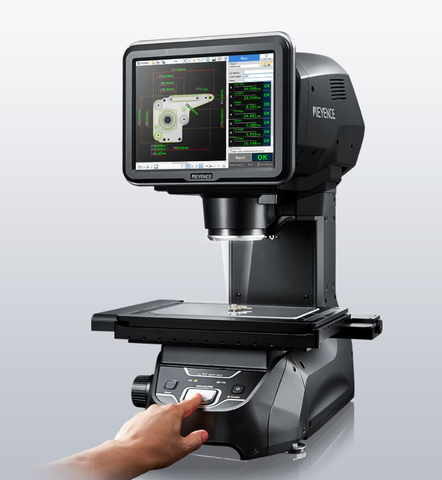

The LM Series High-Accuracy Instant Measurement System is an automated inspection system that can perform measurements to +/- 0.7μm accuracy and +/- 0.1μm repeatability at the push of a button. Similar to the IM Series, the unit has built-in edge detection with automatic focus and lighting. The unit also automatically records measurement data and creates detailed inspection reports. The image showcases our latest LM-1100 model which houses high-resolution double telecentric lenses for precision optical inspection and a large 9 x 5” field of view.

The LM Series solves all of these conventional problems, allowing anyone to easily and accurately operate it

• ±0.1 μm high accuracy
• Simple operation for any user
• Measure instantly at the press of a button

Metal cutting parts

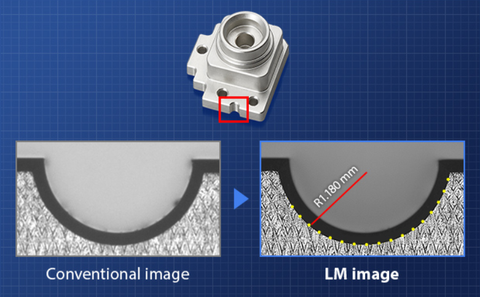

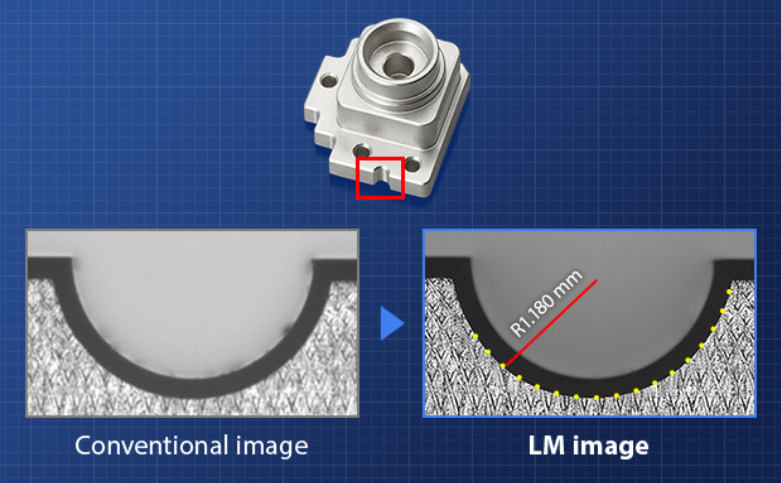

Allows clear checks of surface edge cuts
